Toshiba Satellite C660D laptop screen replacement – March 29, 2016

Hello blog visitors! Yesterday, we have replaced a screen on Toshiba Satellite C660D laptop. When our customer brought this Toshiba laptop, it turned on, but the screen was in black. We did connect the laptop to a external monitor, and we confirmed that this laptop works. Let’s find out how to change screen! 😀

toshiba_satellite_c660d_screen_replacement2 toshiba_satellite_c660d_screen_replacement1

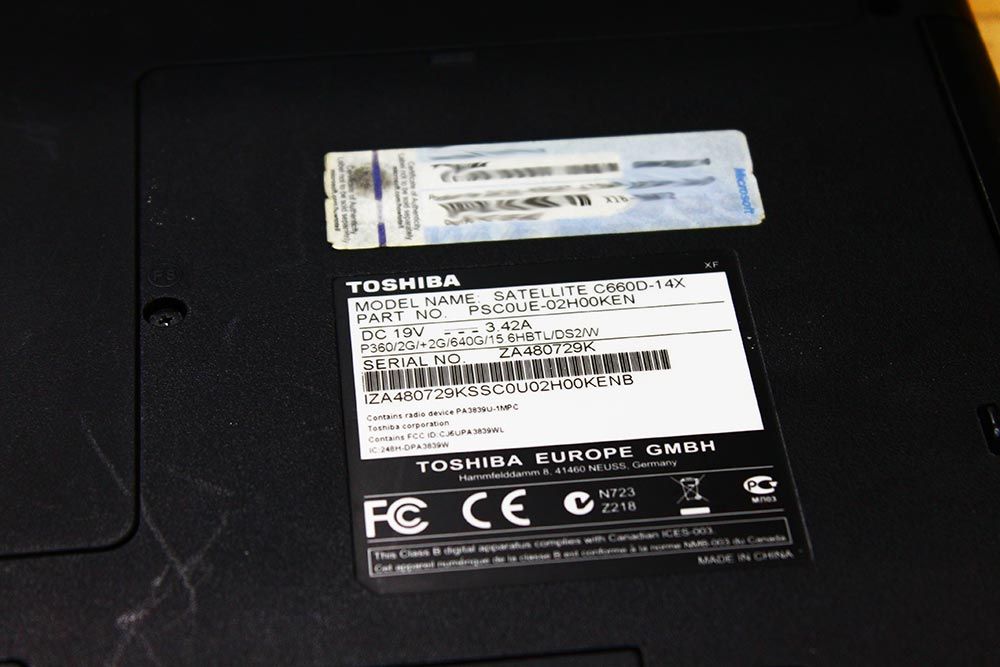

Here is the Toshiba Satellite C660D laptop. It looks like this model is for Europe.

toshiba_satellite_c660d_screen_replacement3

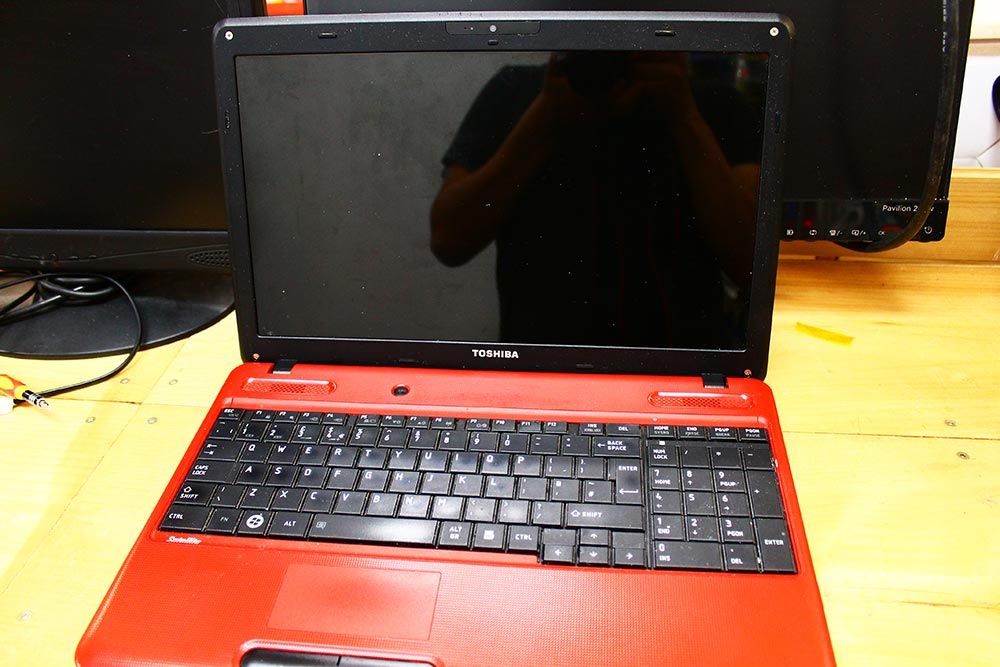

If you look at the screen, you will notice that there are total of 4 silver screws. (top right & left, bottom right & left) First, we need to remove those screws.

toshiba_satellite_c660d_screen_replacement4

toshiba_satellite_c660d_screen_replacement5


toshiba_satellite_c660d_screen_replacement6

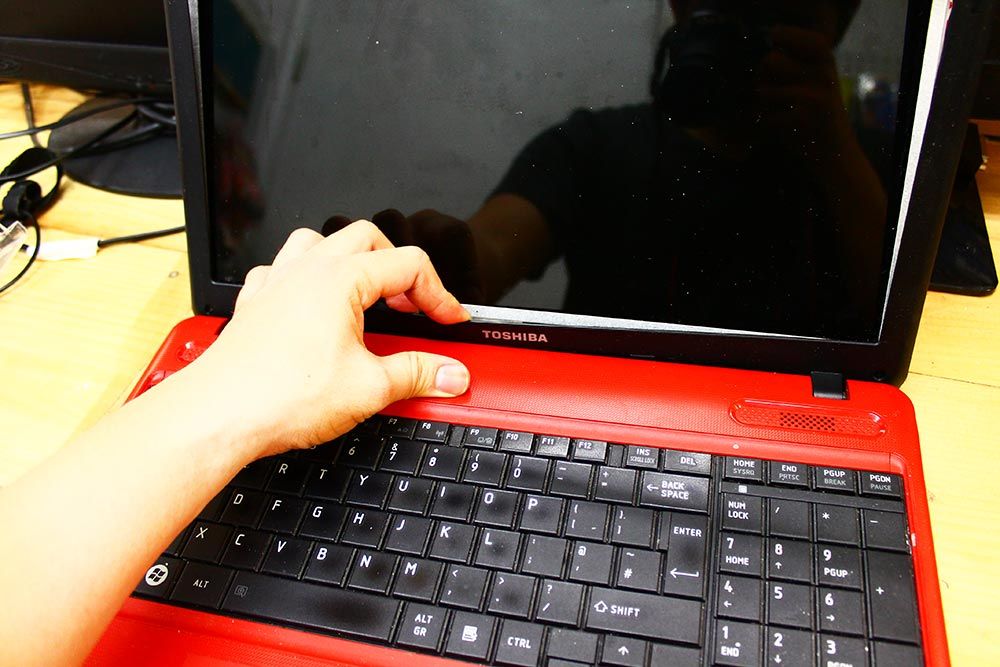

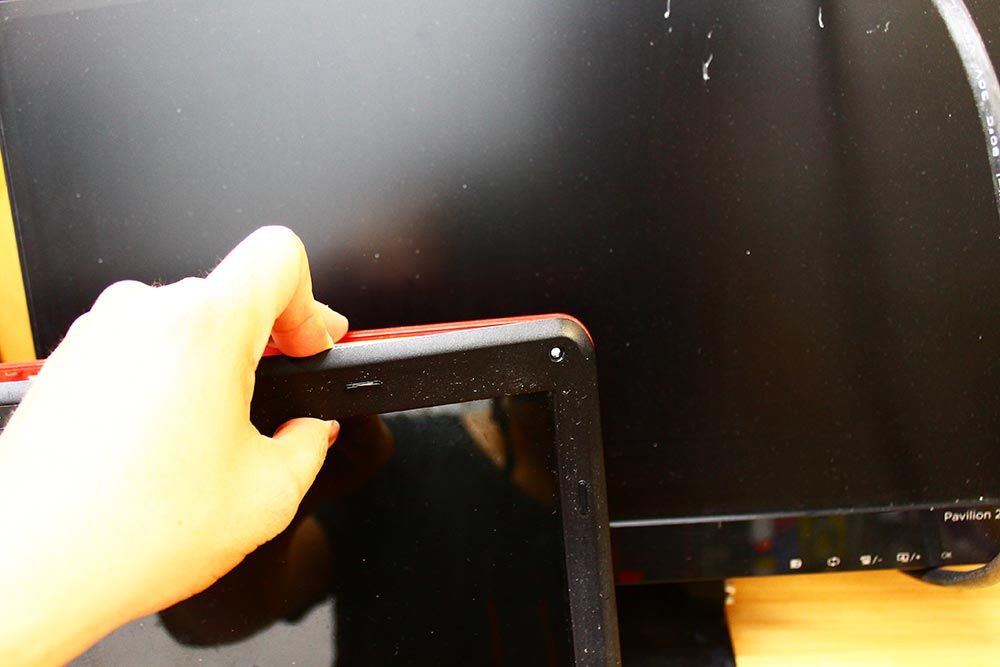

After removing the 4 screws, we tried to separate the plastic screen frame from the main screen.

toshiba_satellite_c660d_screen_replacement8

toshiba_satellite_c660d_screen_replacement9

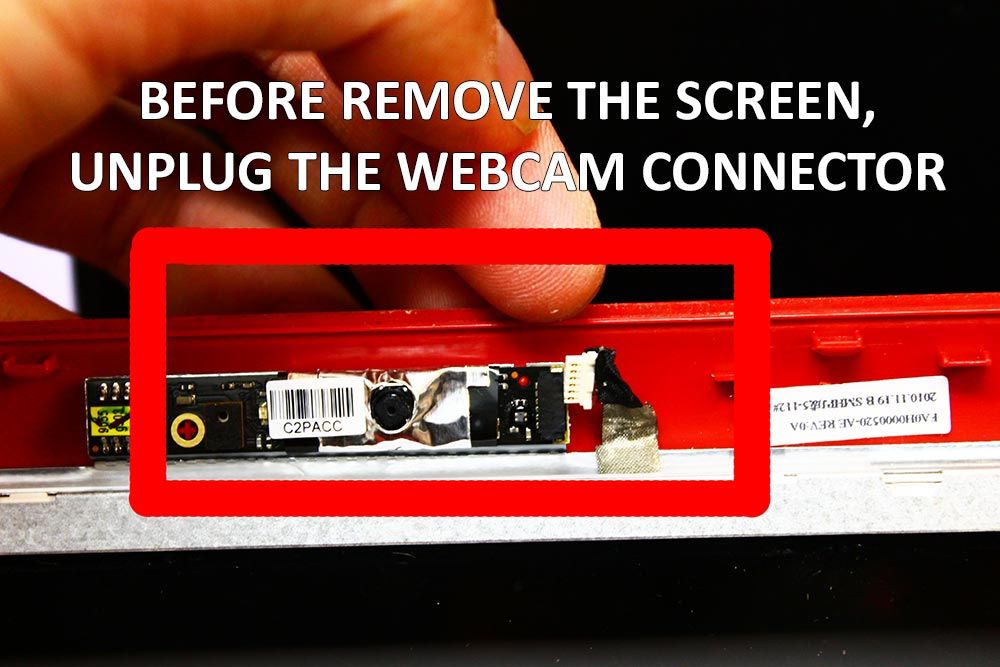

If you have a webcam, remove the webcam connector first.

toshiba_satellite_c660d_screen_replacement10

toshiba_satellite_c660d_screen_replacement11

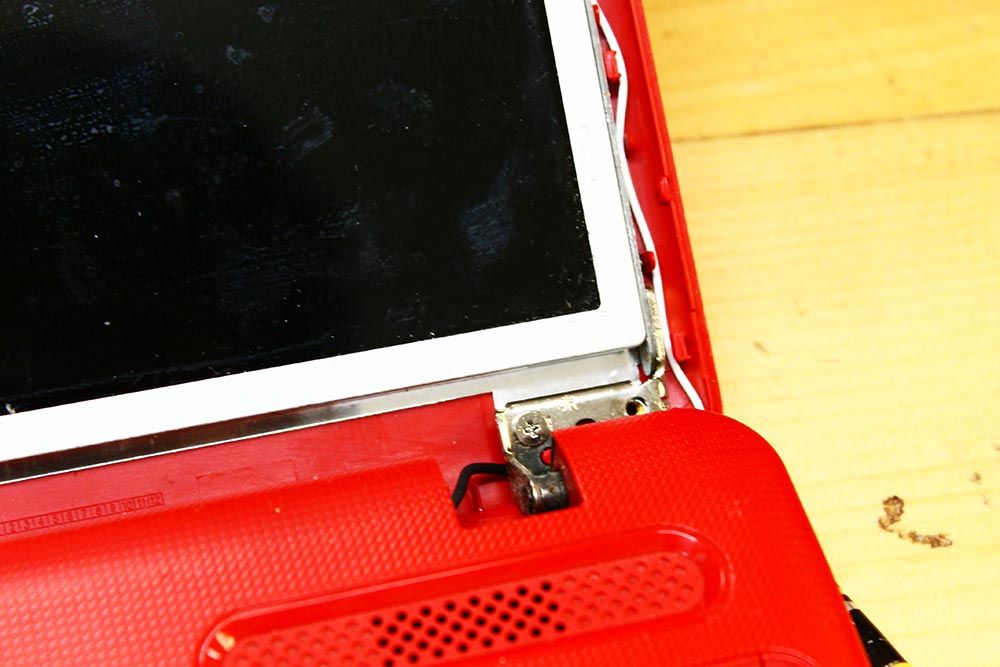

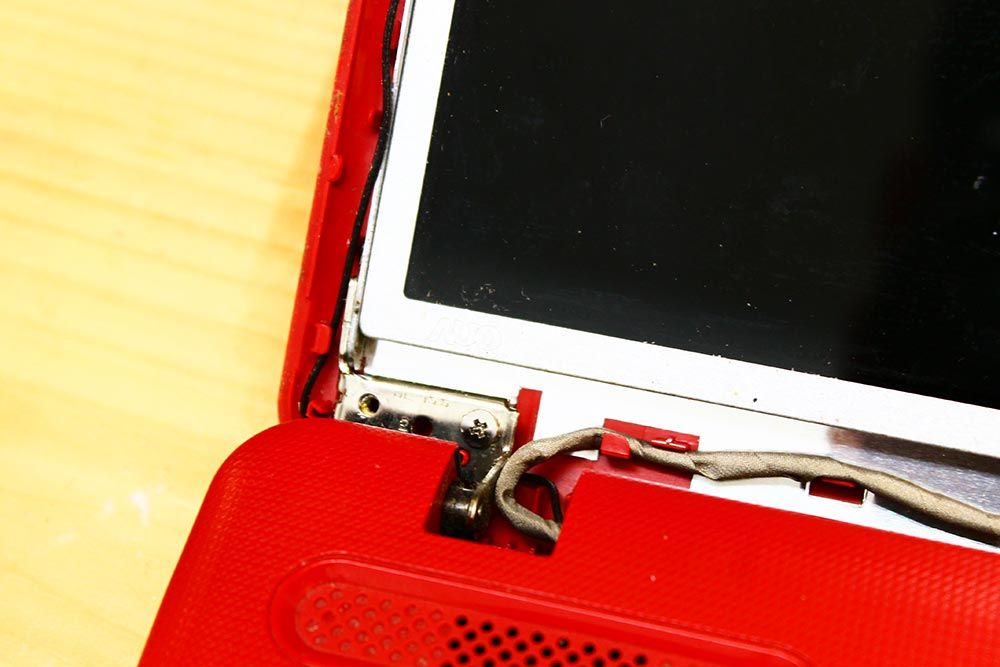

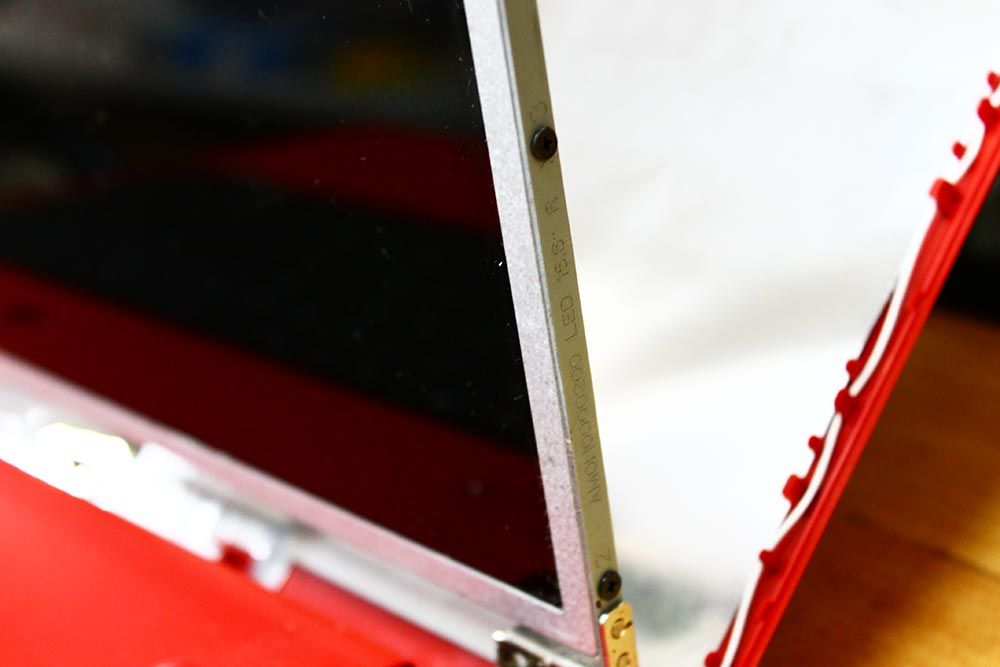

Remove the 2 screws in the bottom.

toshiba_satellite_c660d_screen_replacement12

toshiba_satellite_c660d_screen_replacement13

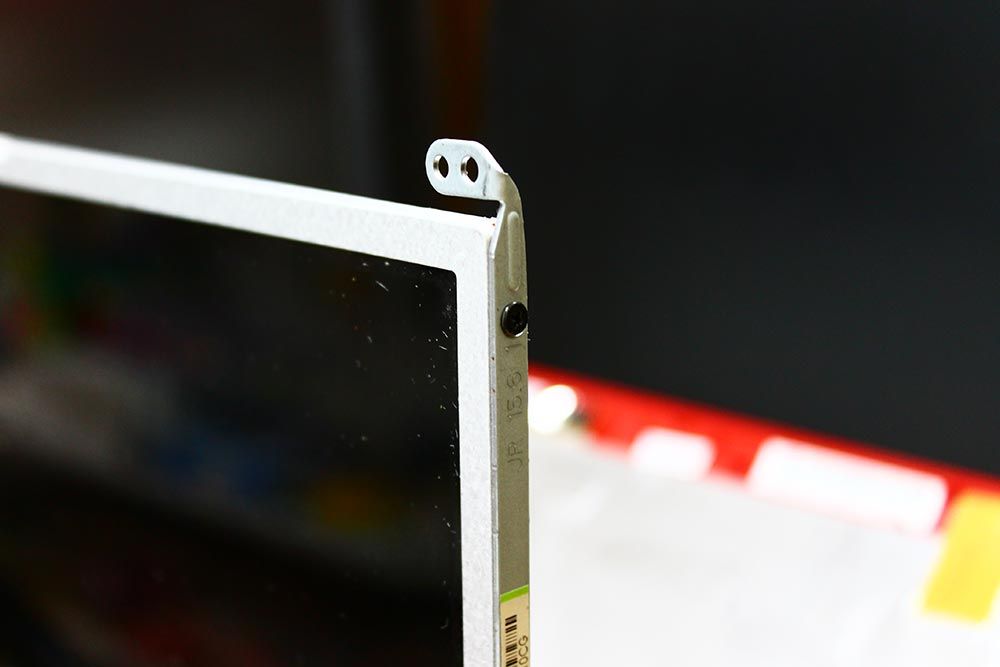

If you look at the side, there are 3 screws for both right & left sides. Remove them.

toshiba_satellite_c660d_screen_replacement14


toshiba_satellite_c660d_screen_replacement15

Remove the 3 screws from the left side too.

toshiba_satellite_c660d_screen_replacement16

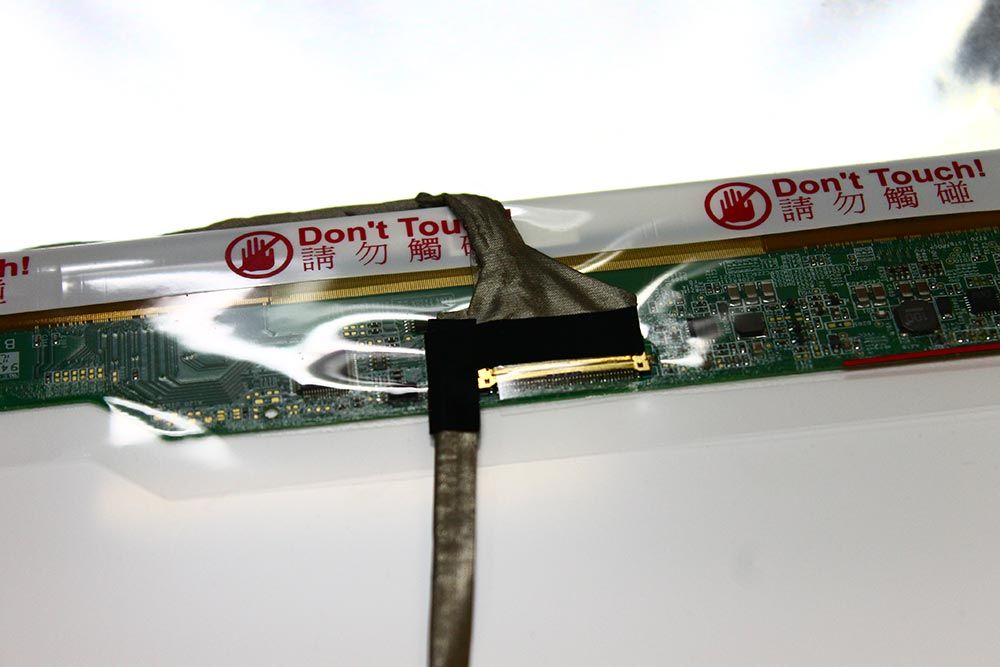

Now, you will be able to remove the screen from the laptop body. In the back of the screen, there is cable like the picture above. Remove the cable carefully. When you finish removing the screen, connect the cable to a new screen, and install the screen to the screen frame. 😀

toshiba_satellite_c660d_screen_replacement17

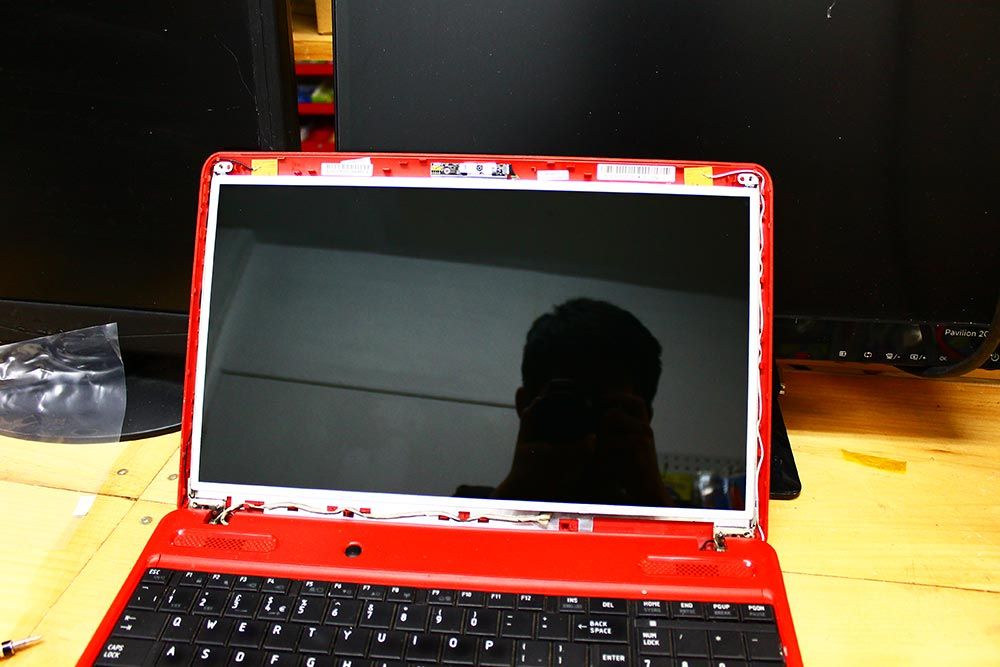

Almost done ! 😀 😀 😀

toshiba_satellite_c660d_screen_replacement18

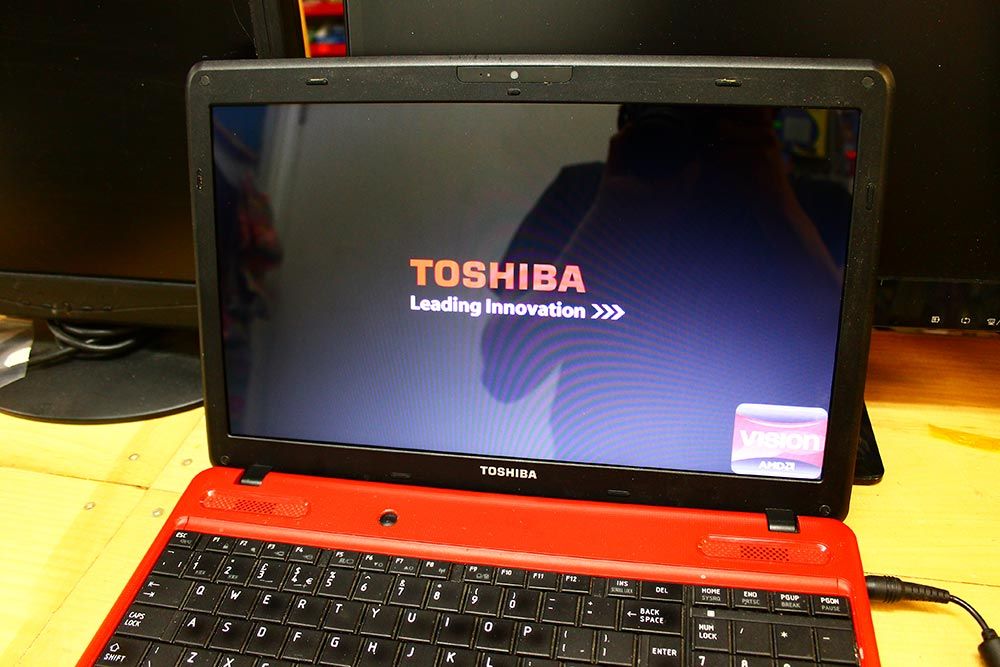

It works now ! Screen is sharp and bright !

Thank you for reading!
