HP Pavilion dv9000 seriesΒ laptop repair – March 22, 2016

Hello, it’s P&T IT BROTHER. Here is a HP Pavilion dv9310ca laptop that we fixed recently. It turns on, but no screen. Many of you might think it is a laptop screen problem, but it was a video chip issue on the motherboard. As your laptop gets old, the solder connection points between motherboard and chips may have cracks. (As your laptop gets hot and cool, solder joints may have cracks) We had to do motherboard reflow.



hp_pavilion_dv9000_2

hp_pavilion_dv9000_3

hp_pavilion_dv9000_4

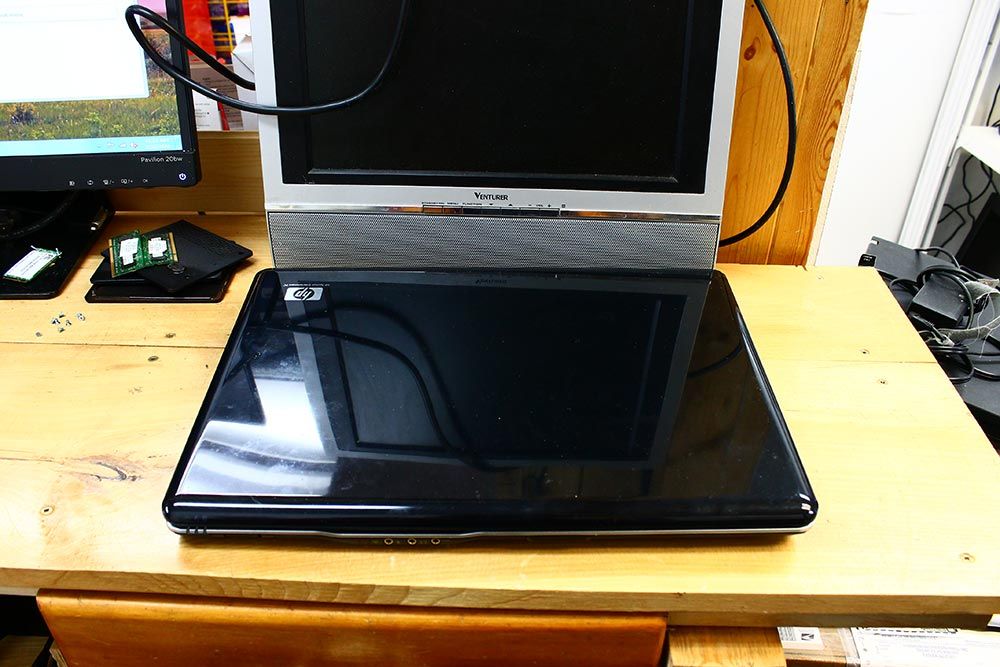

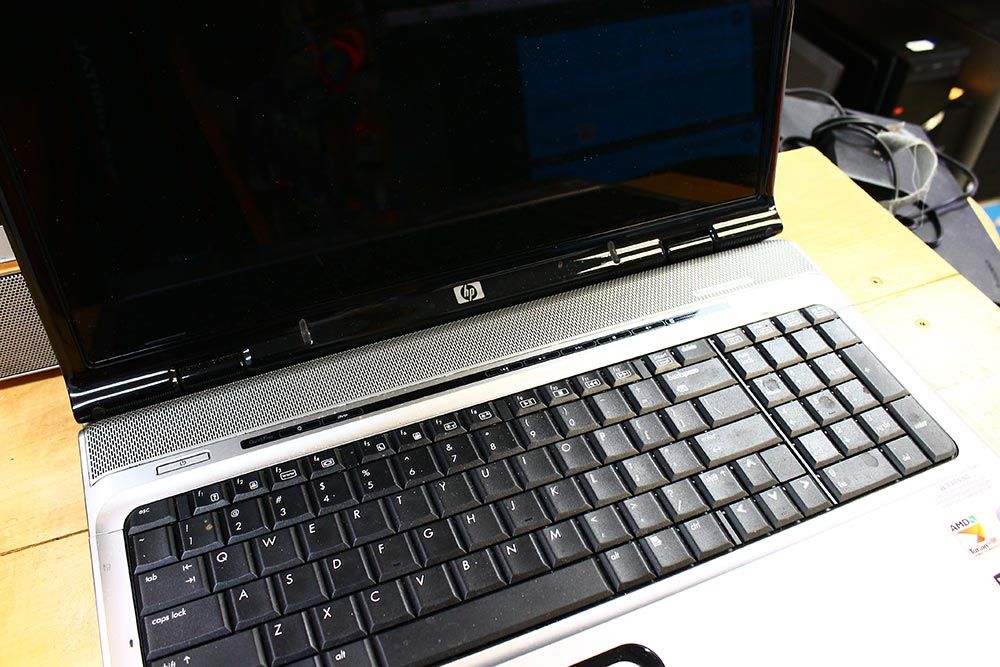

Here is an old HP Pavilion dv9000 series laptop. It’s got AMD dual-core processor with Nvidia video card.

hp_pavilion_dv9000_1

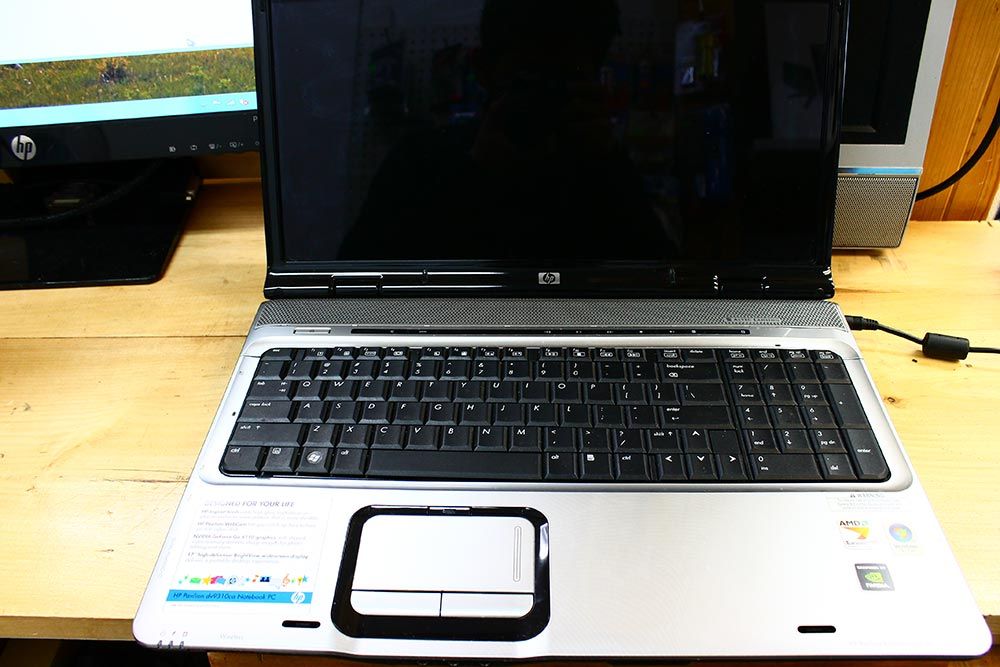

Here is the problem. When we turn this thing on, it turns on with light indicators, but we see nothing on the screen. Also, we do not hear any hard drive scratching. For us, the culprit was the video chip connection with the motherboard.

hp_pavilion_dv9000_5

hp_pavilion_dv9000_6

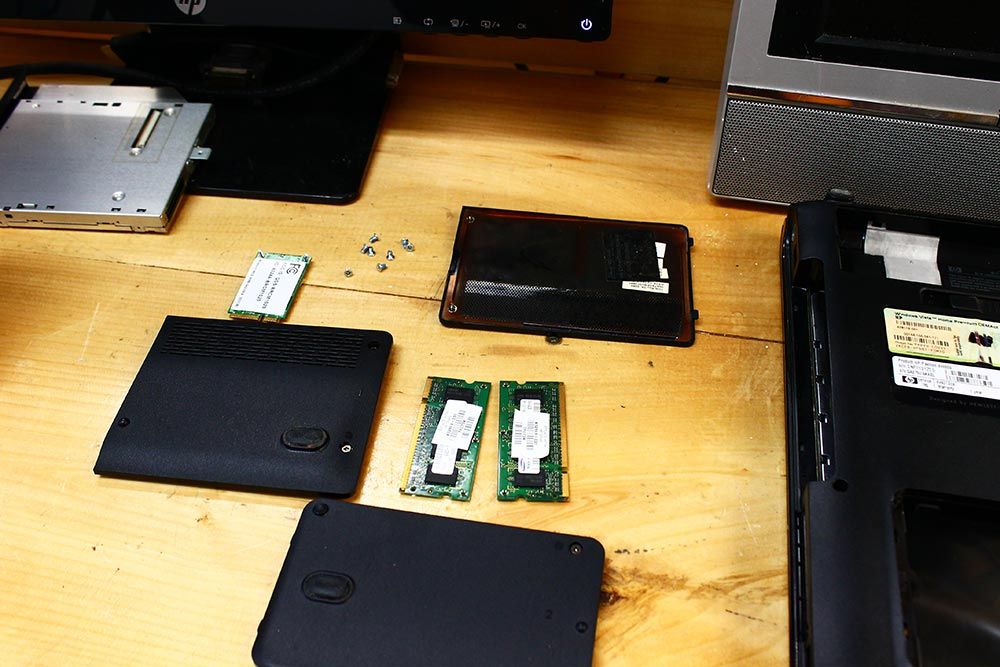

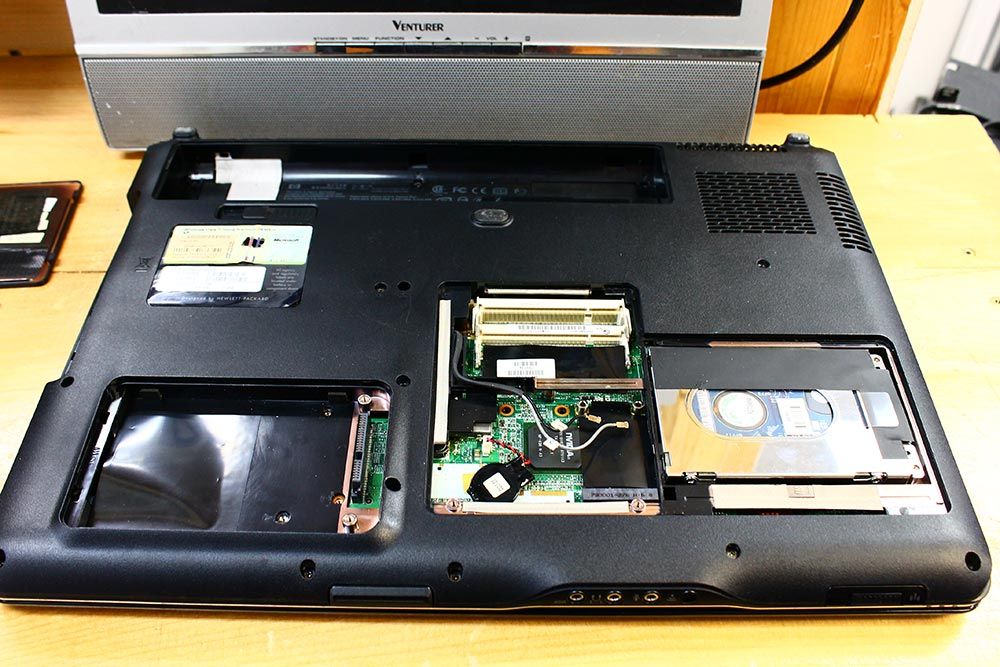

Let’s disassemble the machine! πŸ˜€

hp_pavilion_dv9000_7

Of course with a black coffee! The weather got cold again…

hp_pavilion_dv9000_8

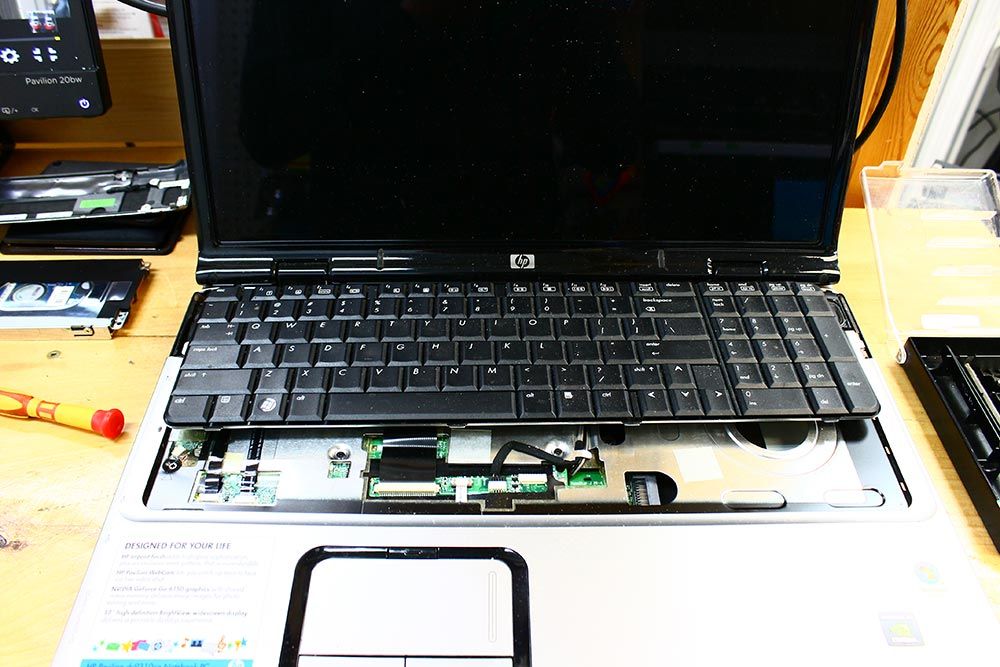

After removing all screws underneath the laptop, let’s remove the upper control panel.

hp_pavilion_dv9000_9

Then, Β let’s remove the keyboard.

hp_pavilion_dv9000_10

hp_pavilion_dv9000_11

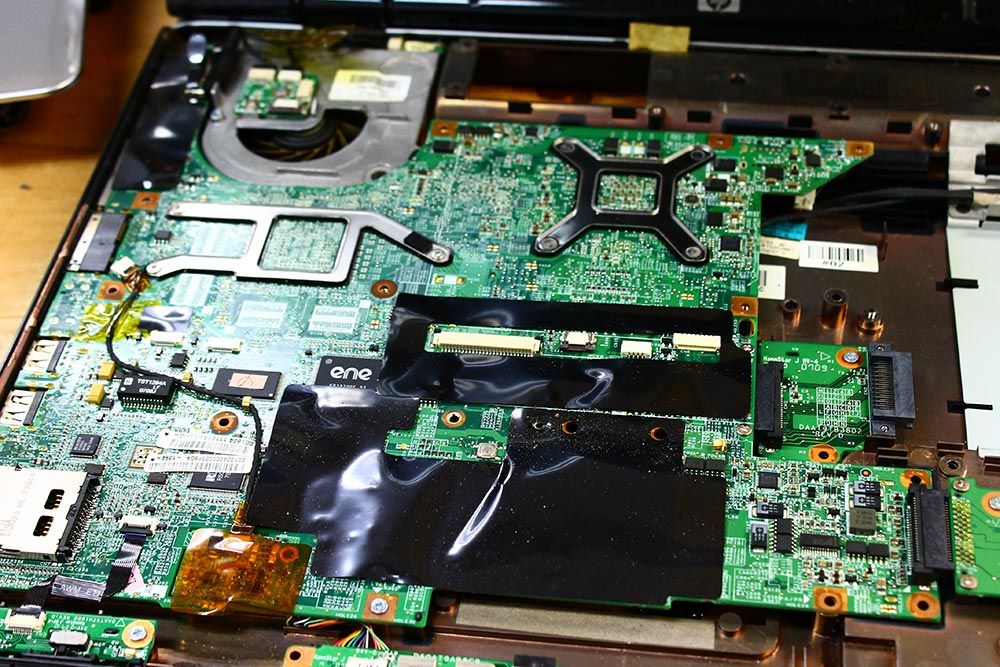

We now have access to the motherboard! πŸ˜€ πŸ˜€ πŸ˜€

hp_pavilion_dv9000_12

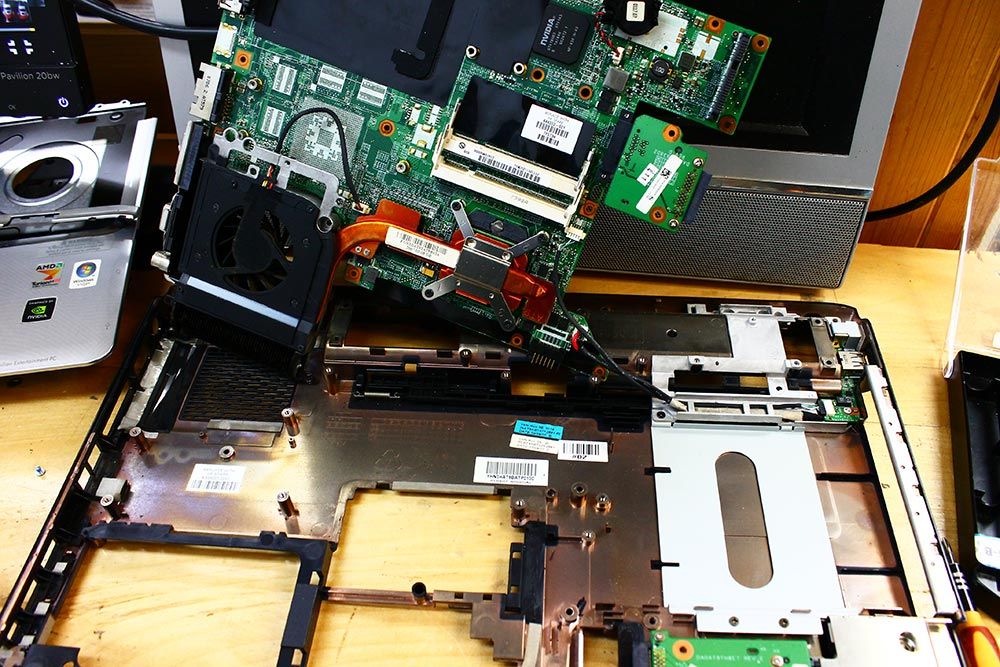

We now see the AMD CPU and the NVIDIA VIDEO CHIP!

hp_pavilion_dv9000_13

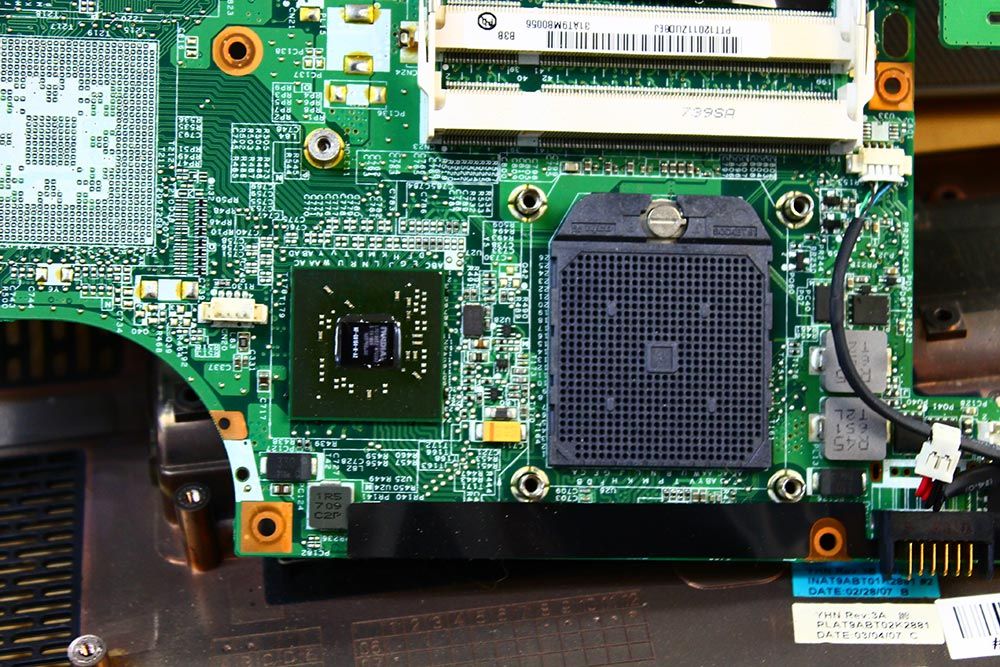

Heatsink removed… After removing the motherboard, we have performed the motherboard reflow job. (Sorry that we did not include the relflow work here. We will post it later on our blog.)

hp_pavilion_dv9000_14

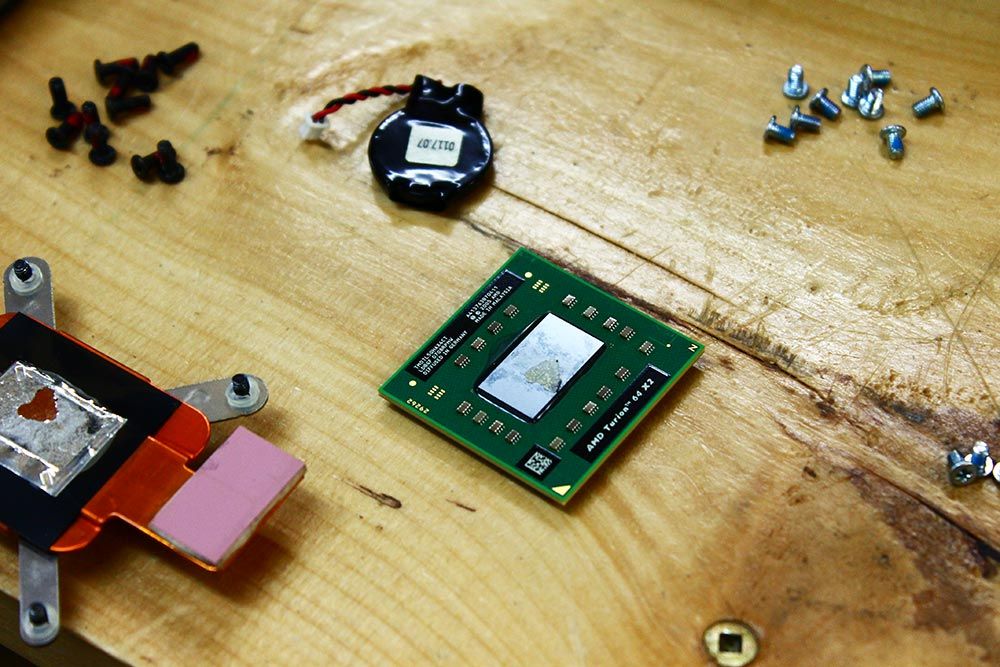

Here is the AMD Turion 64 X2 processor.

hp_pavilion_dv9000_15

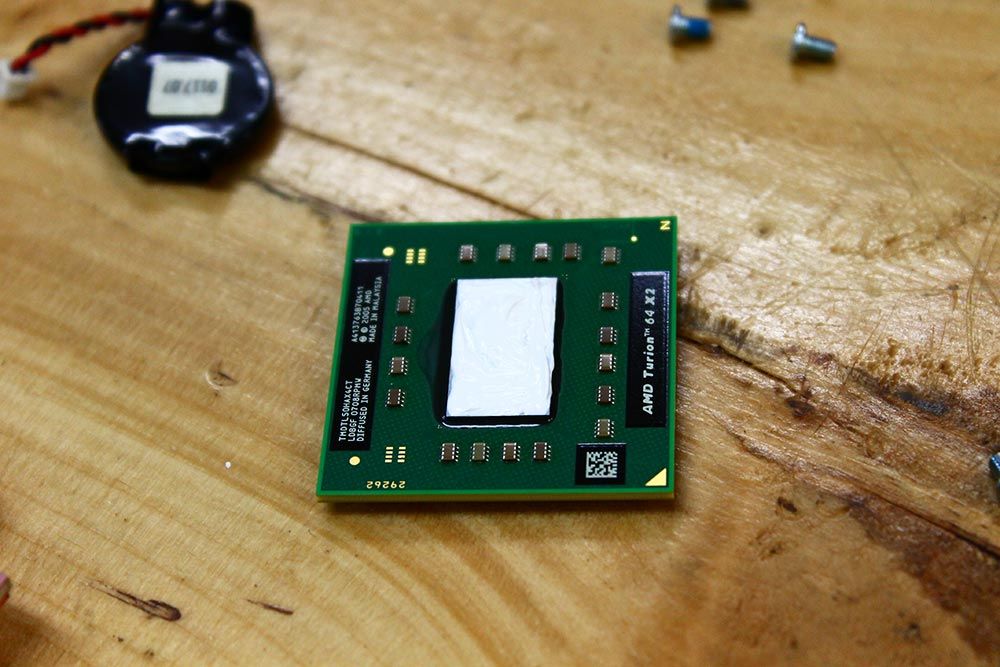

Let’s get close to it…

hp_pavilion_dv9000_16

We applied a new thermal compound for better cooling performance! πŸ™‚

hp_pavilion_dv9000_17

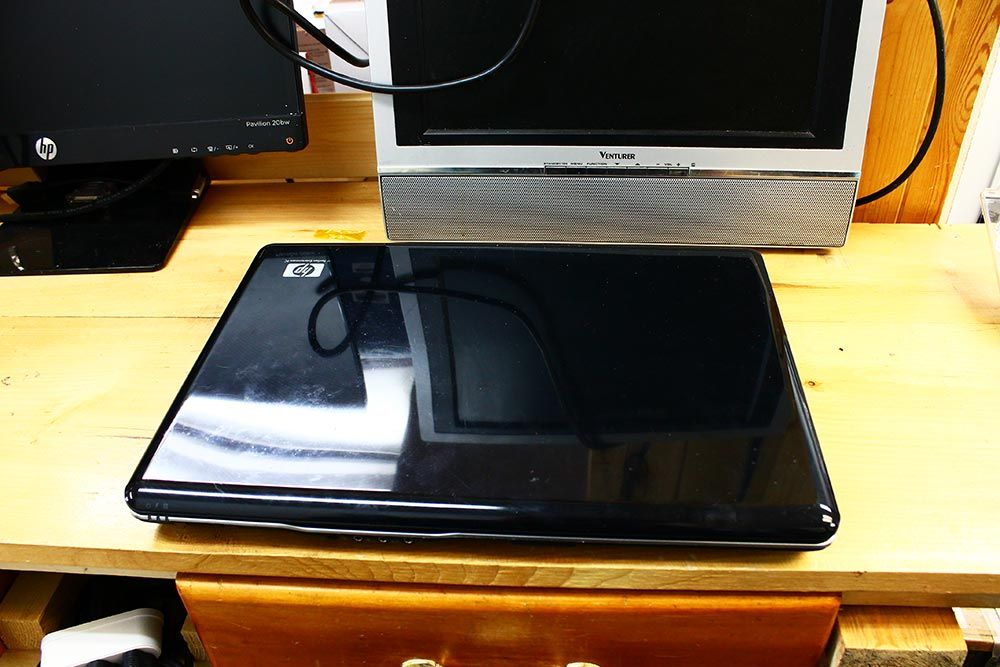

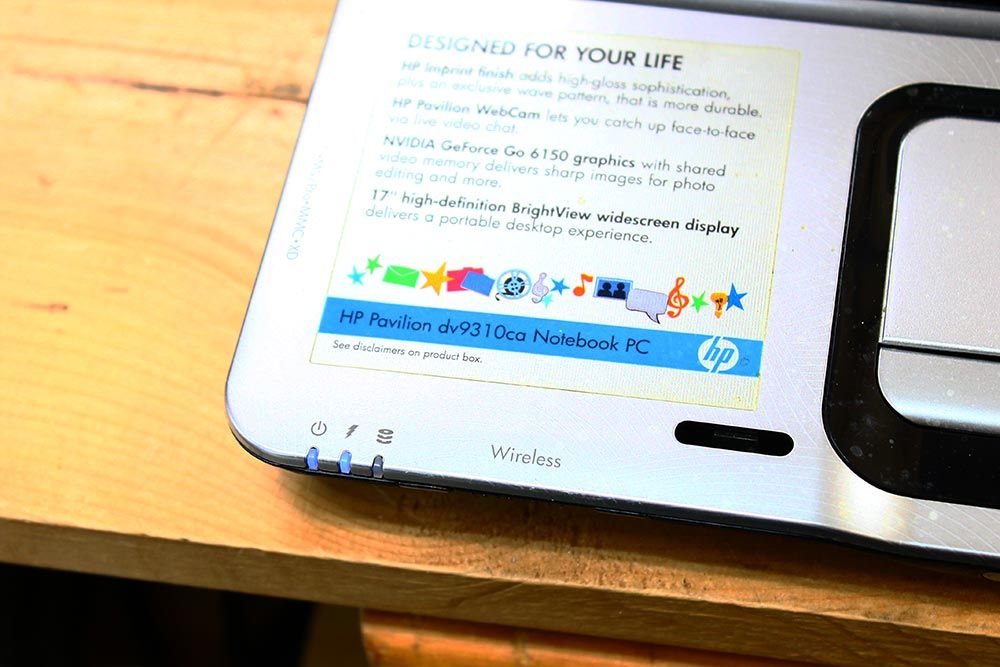

Laptop re-assembled.

hp_pavilion_dv9000_18

hp_pavilion_dv9000_19

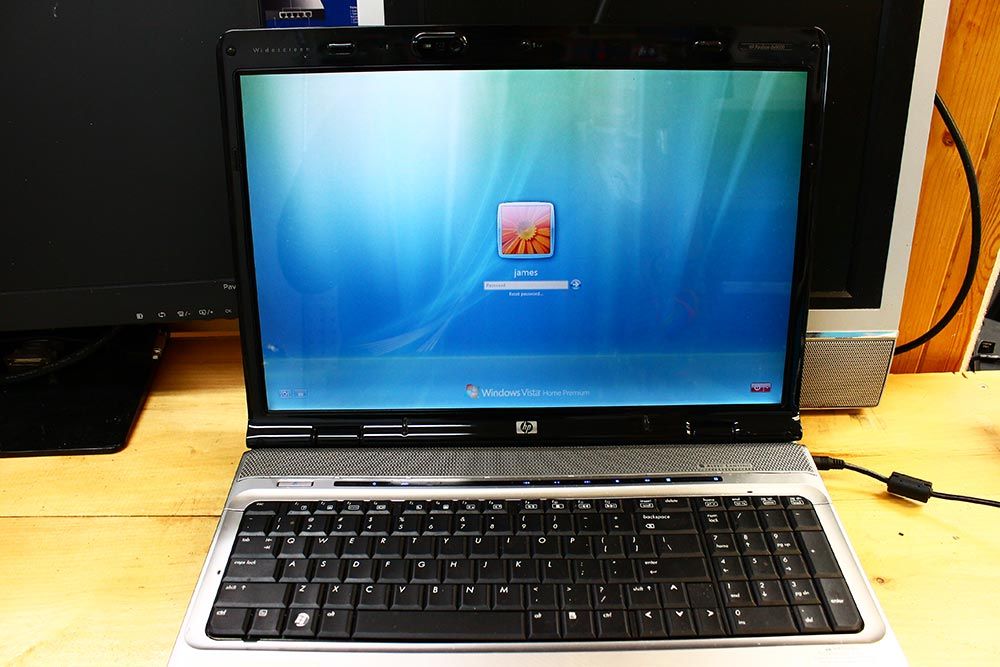

It work again !!! πŸ˜€ πŸ˜€ πŸ˜€ πŸ˜€ πŸ˜€ James will be happy now !

Thank you for reading!
