HP Pavilion 14″ V024CA laptop screen replacement – December 10, 2015

Hello ! πŸ˜€ πŸ˜€ πŸ˜€ It’s P&T IT BROTHER. Recently, one of our customer brought in a HP laptop. The problem was the laptop screen. As soon as we turn on the laptop, we see white vertical lines in black screen. We immediately assumed that it could be the laptop screen itself or the connection between the screen and the laptop motherboard. Let’s find out what went wrong. πŸ˜€

hp_pavilion_14_v024ca_screen_replacement1

hp_pavilion_14_v024ca_screen_replacement2

hp_pavilion_14_v024ca_screen_replacement3

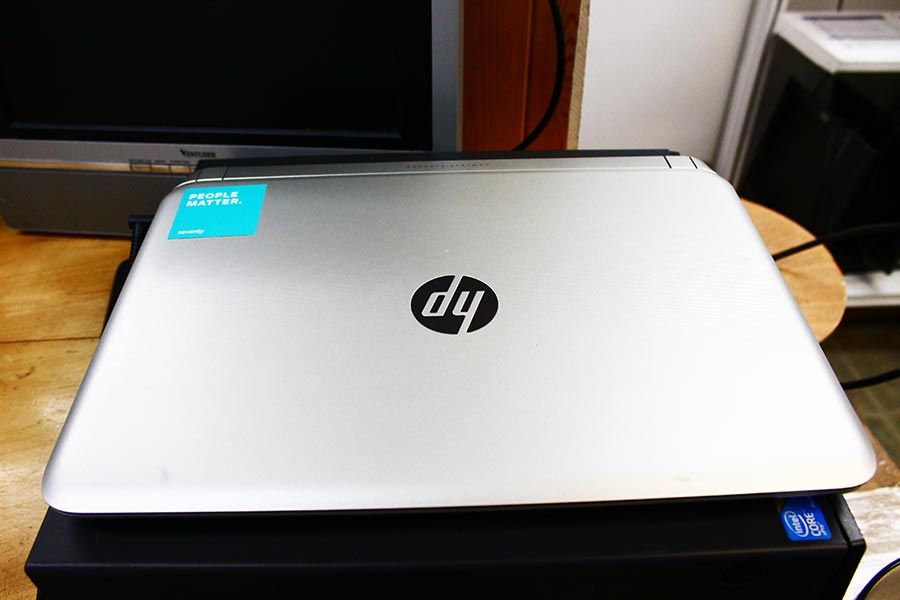

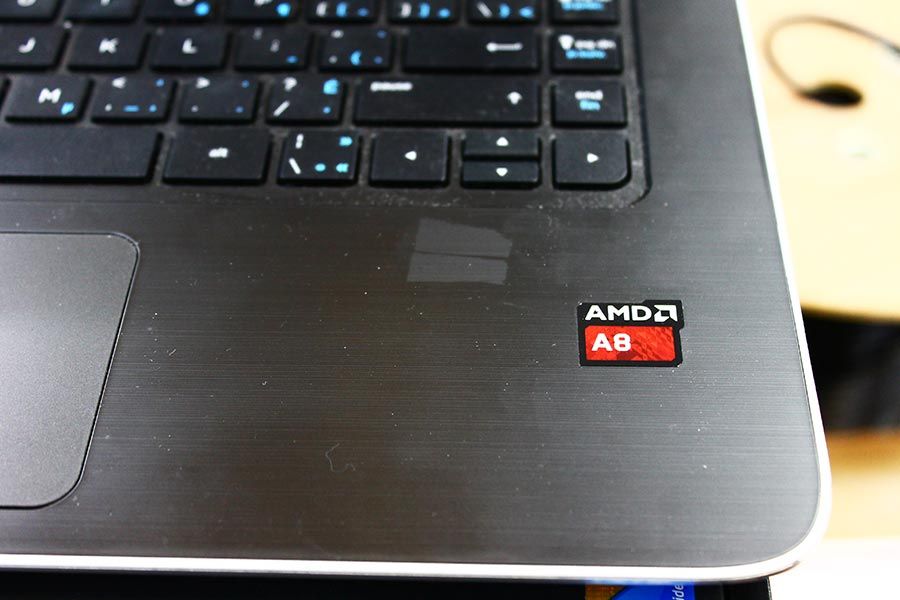

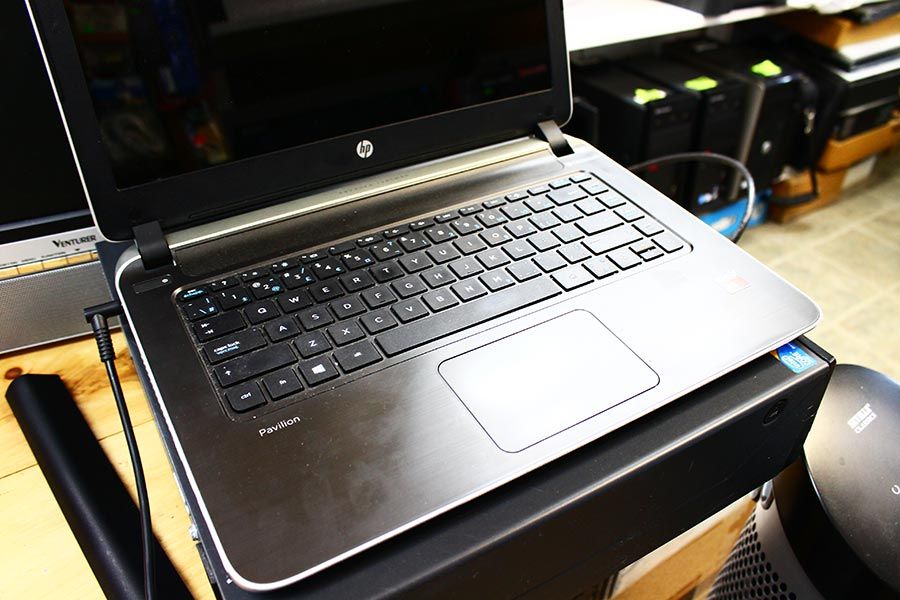

Here is the 14″ HP v024ca laptop. It’s got AMD A8 processor.

hp_pavilion_14_v024ca_screen_replacement4

hp_pavilion_14_v024ca_screen_replacement5

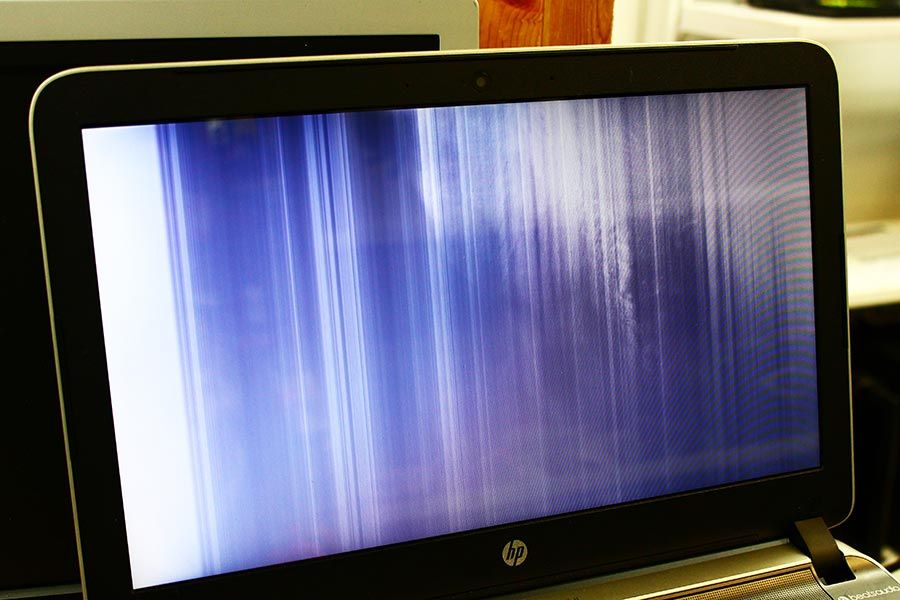

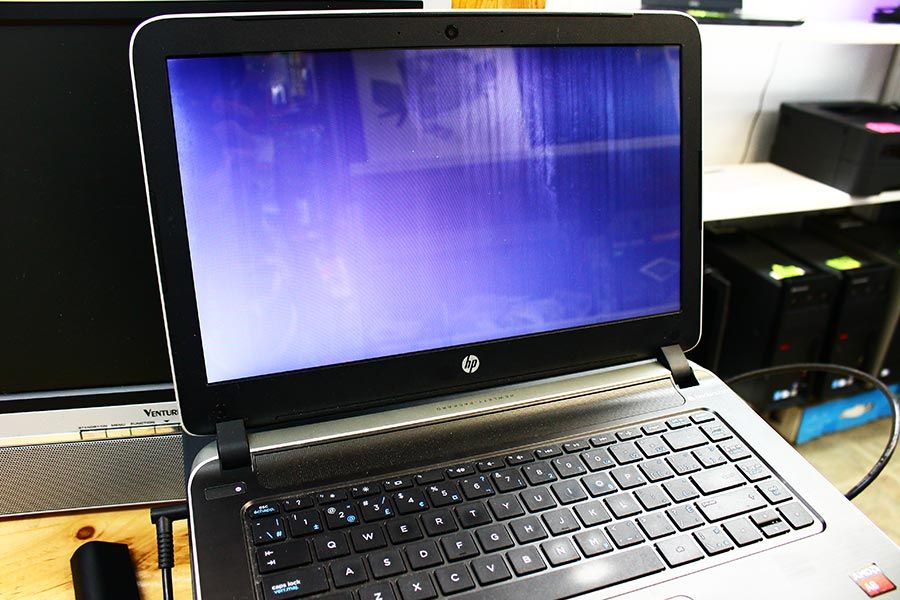

This is what happens when we turn on this 14″ HP laptop… It sounds like it’s working, but the screen remains like the picture above all the time.

hp_pavilion_14_v024ca_screen_replacement6

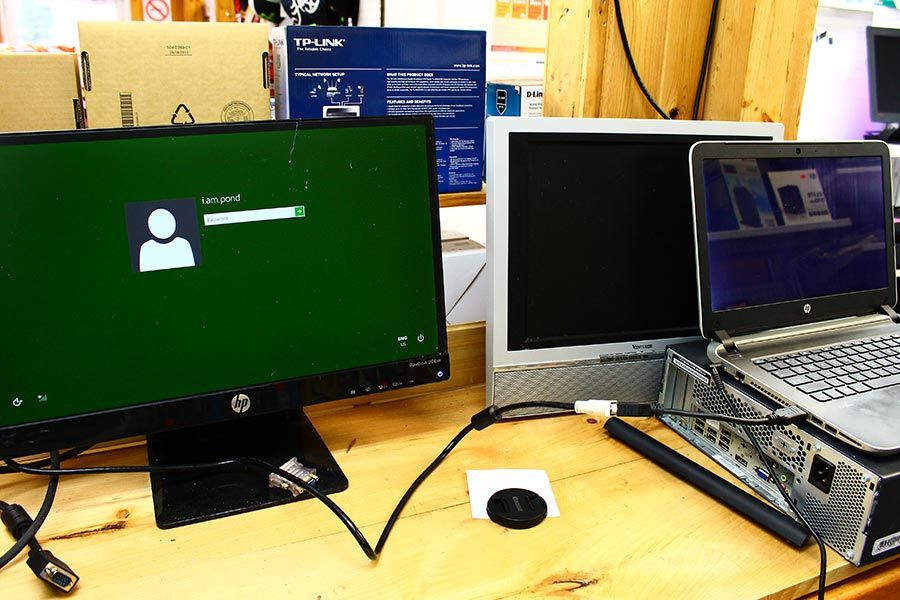

Before we disassemble this HP laptop, we did connect an external monitor to the laptop, and it works fine! It means the problem is not the video chip. It will be the screen or the connection between screen and motherboard.

hp_pavilion_14_v024ca_screen_replacement7

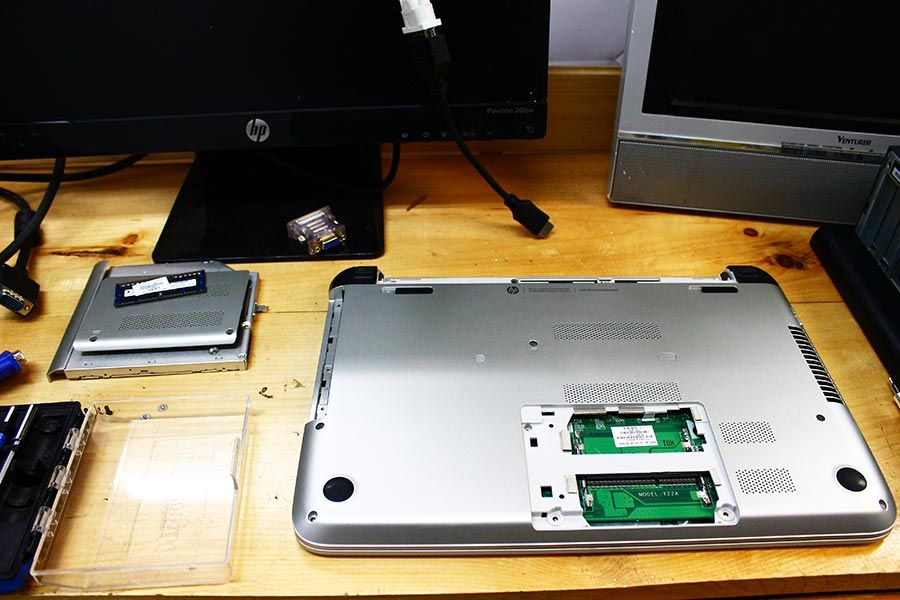

Disassembly started. πŸ™‚ πŸ™‚ πŸ™‚ To disassemble, we must unscrew all the bolts underneath the laptop.

hp_pavilion_14_v024ca_screen_replacement8

hp_pavilion_14_v024ca_screen_replacement9

hp_pavilion_14_v024ca_screen_replacement10

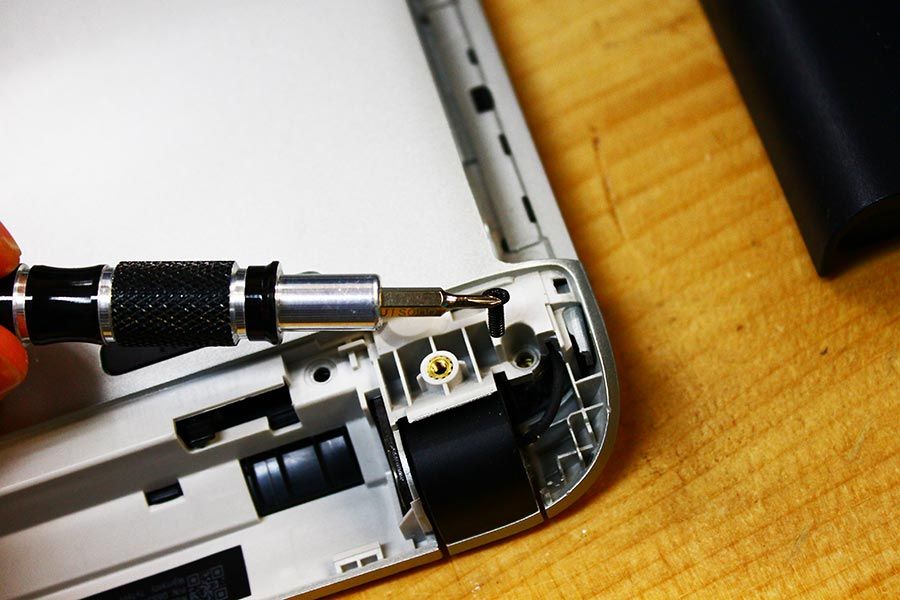

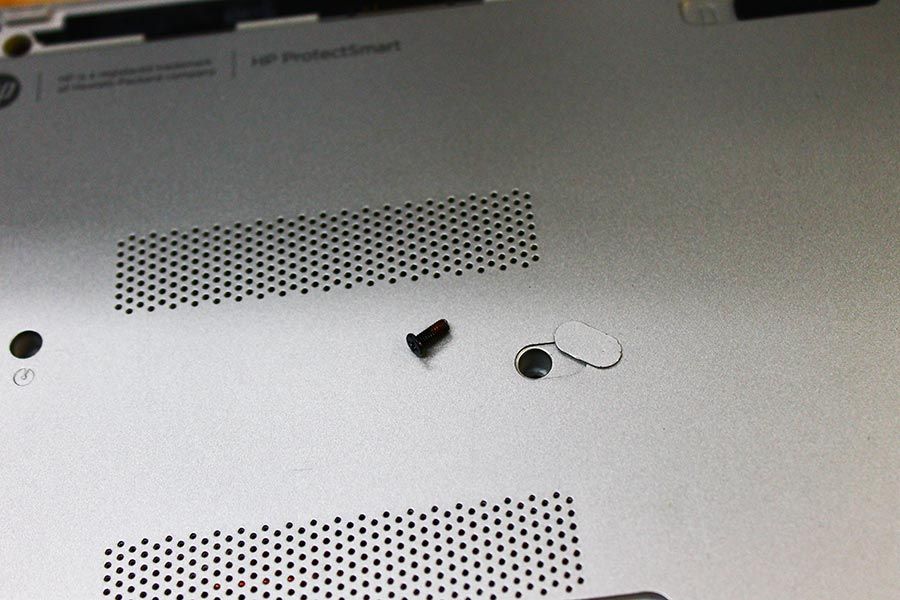

We have found many hidden screws. So, be careful. If you try to disassemble without removing all screws, you may break the laptop.

hp_pavilion_14_v024ca_screen_replacement11

hp_pavilion_14_v024ca_screen_replacement12

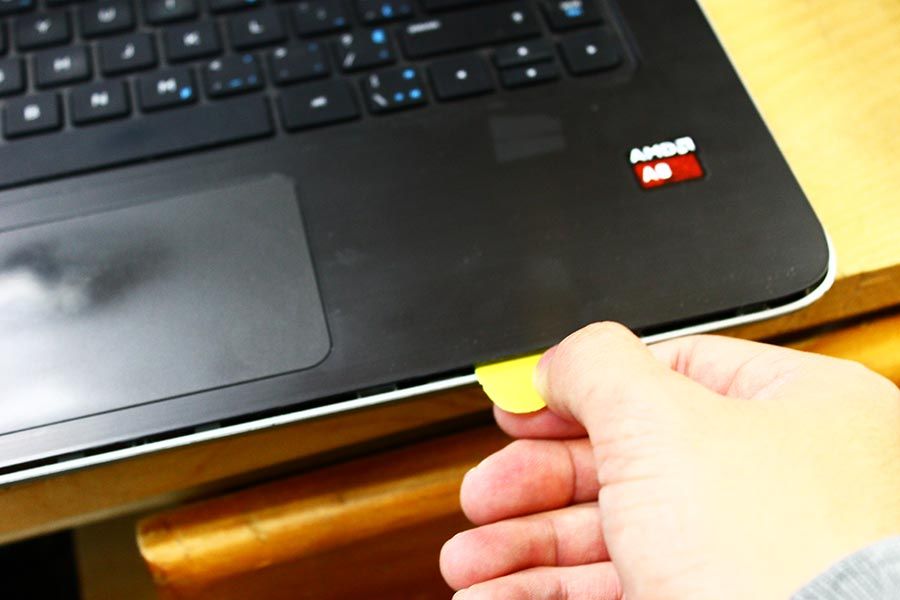

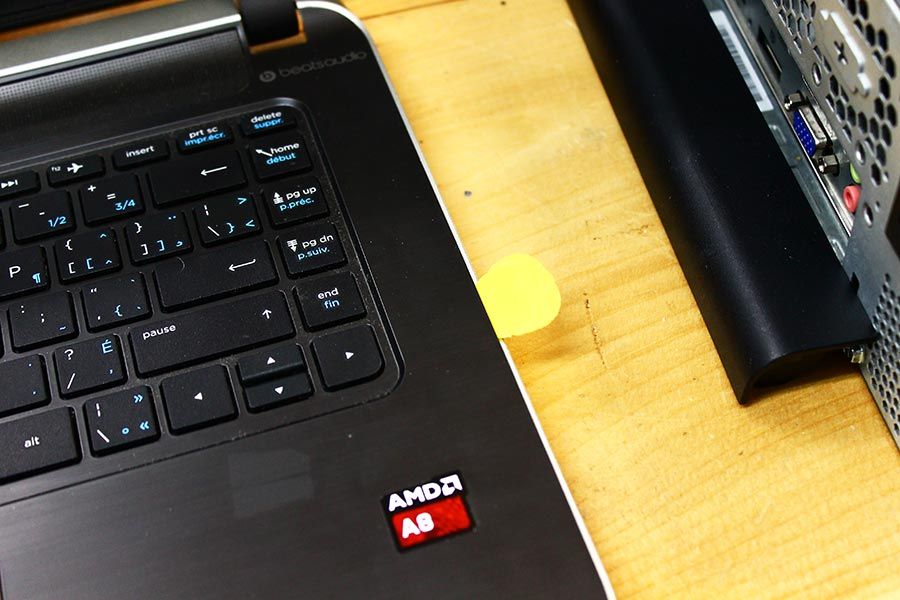

a guitar pick is always the best tool when it comes to disassembly of electronics.

hp_pavilion_14_v024ca_screen_replacement13

hp_pavilion_14_v024ca_screen_replacement14

hp_pavilion_14_v024ca_screen_replacement15

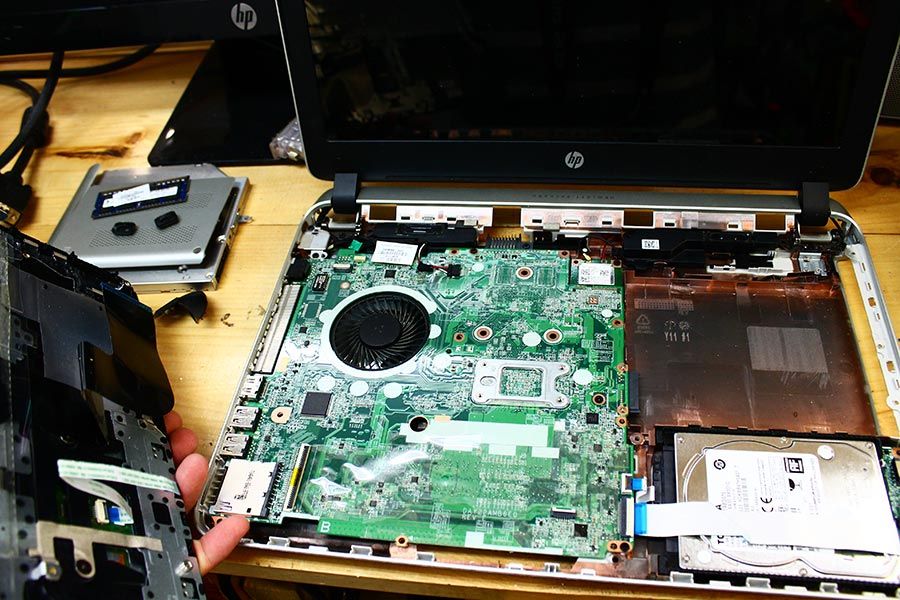

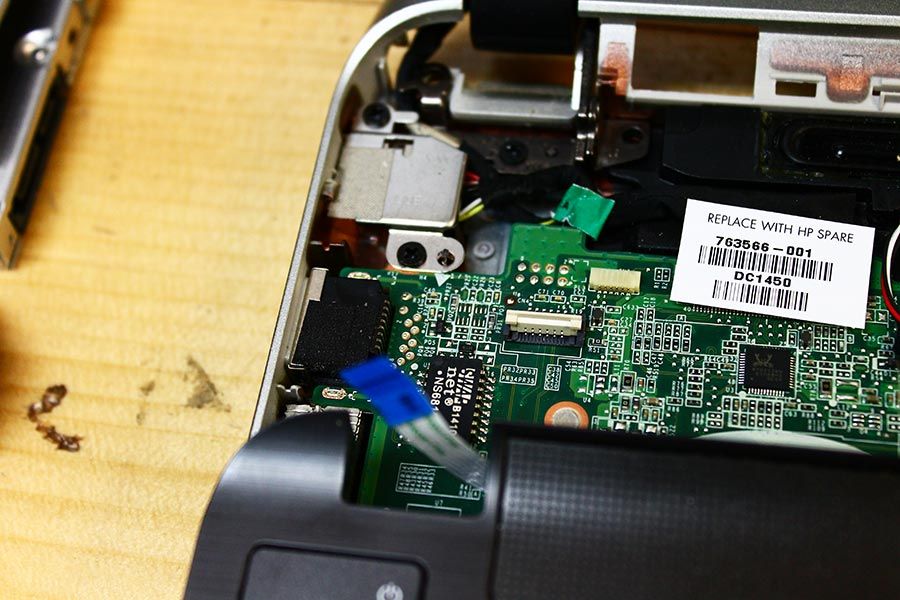

The keyboard has been removed from the main body.

hp_pavilion_14_v024ca_screen_replacement16

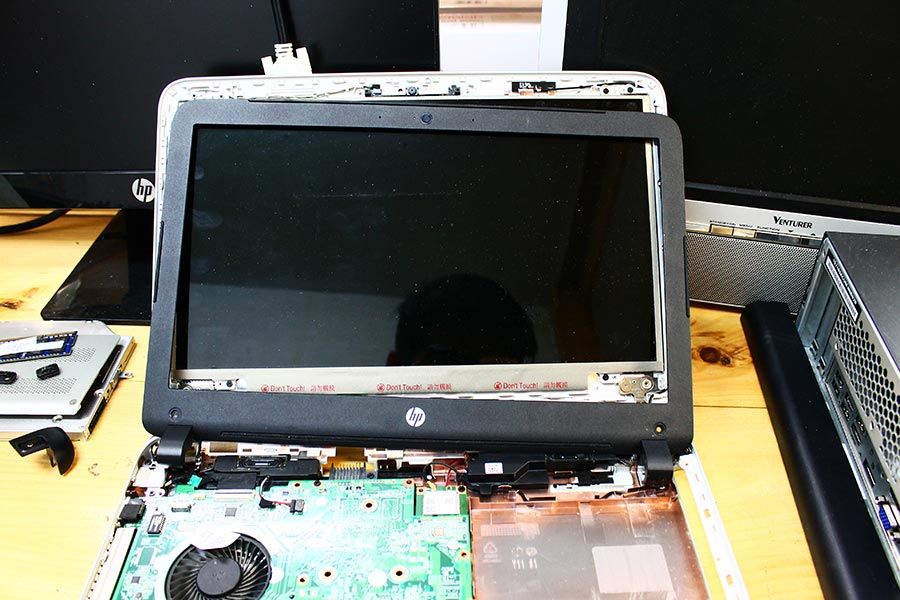

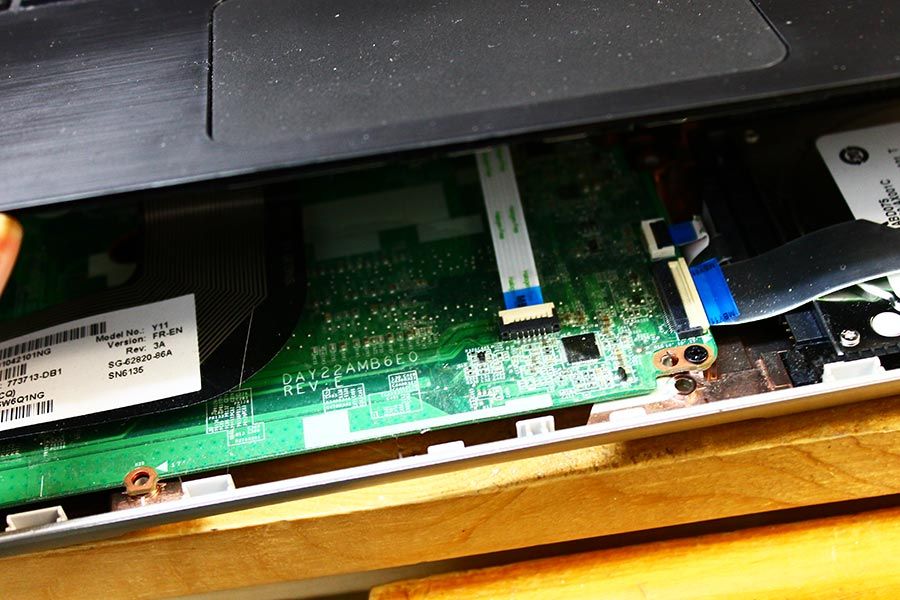

Screen frame has been removed. We have examined the connection between the screen and the motherboard, and we couldn’t find anything wrong by looking.

hp_pavilion_14_v024ca_screen_replacement17

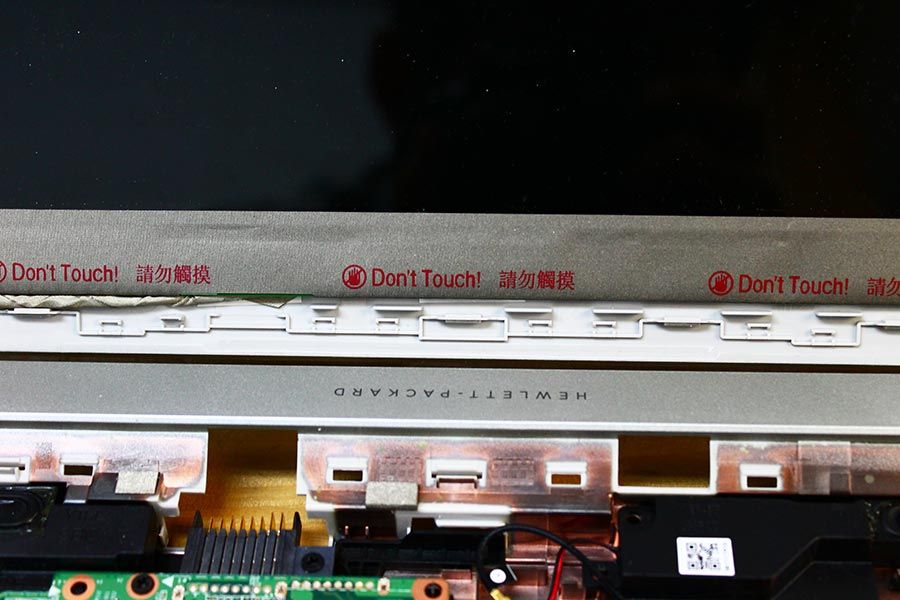

It looks like the point where it says “Don’t Touch!” has the circuits and connector to the LCD screen. Let’s try to touch, and see what happens.

hp_pavilion_14_v024ca_screen_replacement18

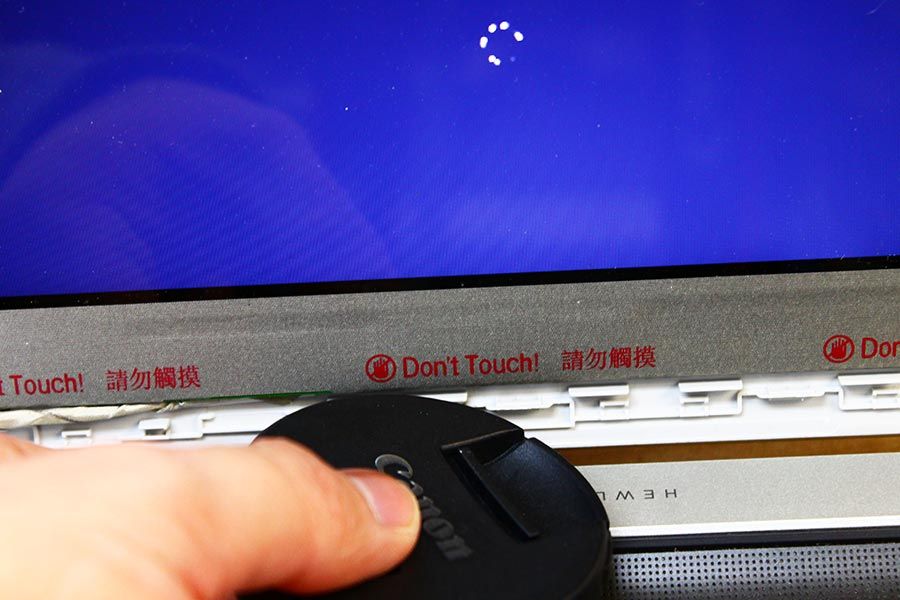

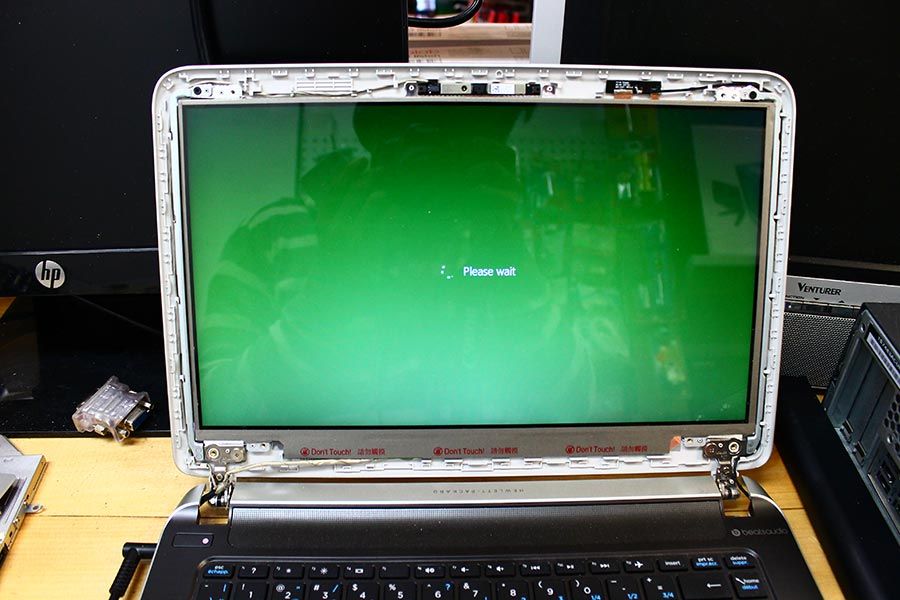

We found it! When we put a light force to that point, the screen turned on nicely.

hp_pavilion_14_v024ca_screen_replacement19

Okay. It seems working. Let’s put the frame back.

hp_pavilion_14_v024ca_screen_replacement20

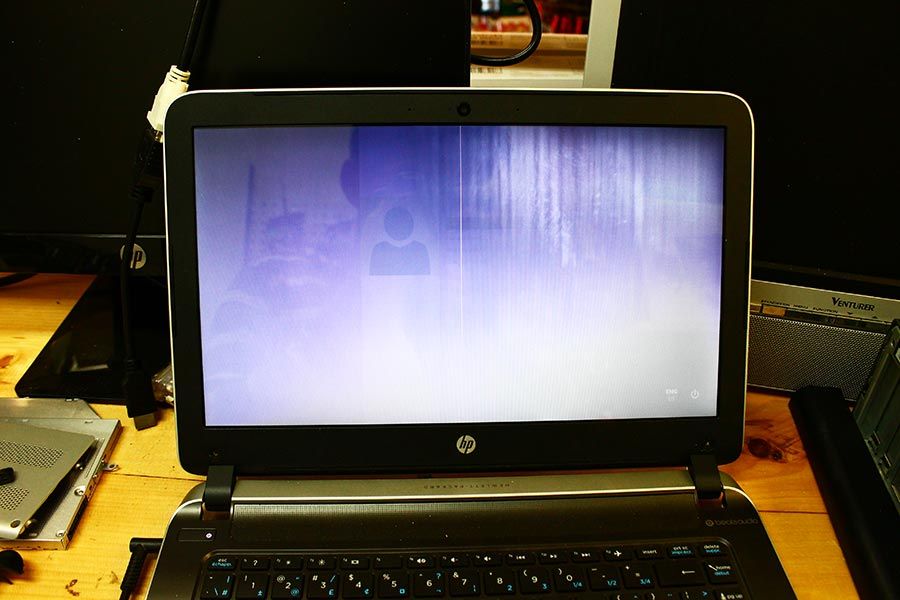

Okay… Once we put the frame back, the screen stopped working again.. We did disassemble the screen, and we have confirmed that theΒ ribbon cable between the screen and back circuit panel have damage. We were not able to replace the ribbon cable only. (Sorry. No picture) We decided to replace the whole screen.

hp_pavilion_14_v024ca_screen_replacement21

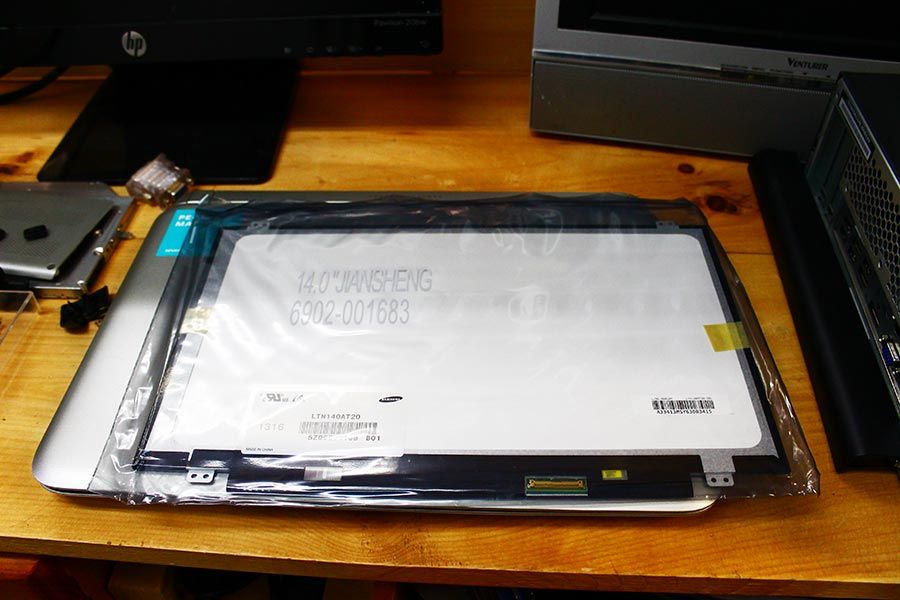

After few days, The Samsung new LED LCD screen shipped to us. Let’s install it!

hp_pavilion_14_v024ca_screen_replacement22

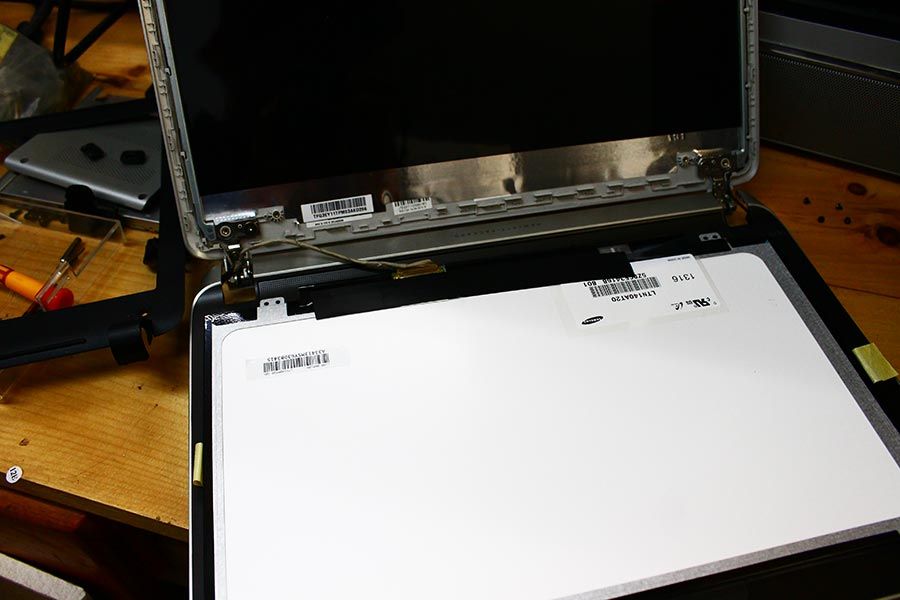

Installation is in progress πŸ˜€ πŸ˜€ πŸ˜€

hp_pavilion_14_v024ca_screen_replacement23

Yes! It works like a charm!! It’s sharp and bright. πŸ˜€ πŸ˜€ πŸ˜€

hp_pavilion_14_v024ca_screen_replacement24

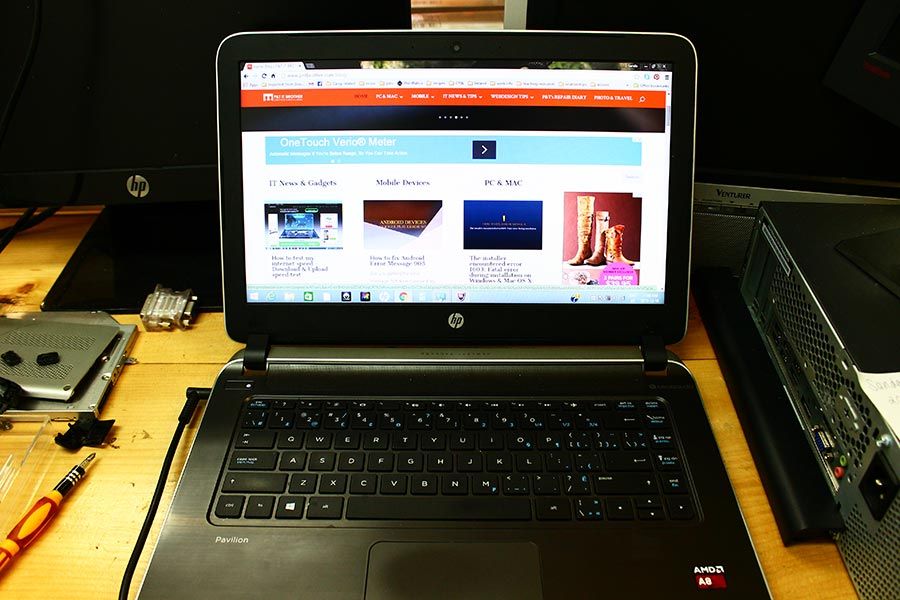

Works perfect! The screen replacement of HP 14 v024ca has finished.

Thank you for reading!
