Acer Aspire 5735/5735Z laptop overheating & shuts down itself fix – Feb 10, 2016


Hello ~ It’s been a long time since we uploaded. 😀 Today, it is about an old Acer Aspire 5735 laptop. This one was restarting it self or shutting down itself randomly. We immediately noticed that the laptop was getting hot sometime after we power up. Let’s check the laptop’s cooling system and fix the shutting down issue.

acer_5735z_overheating_fix2

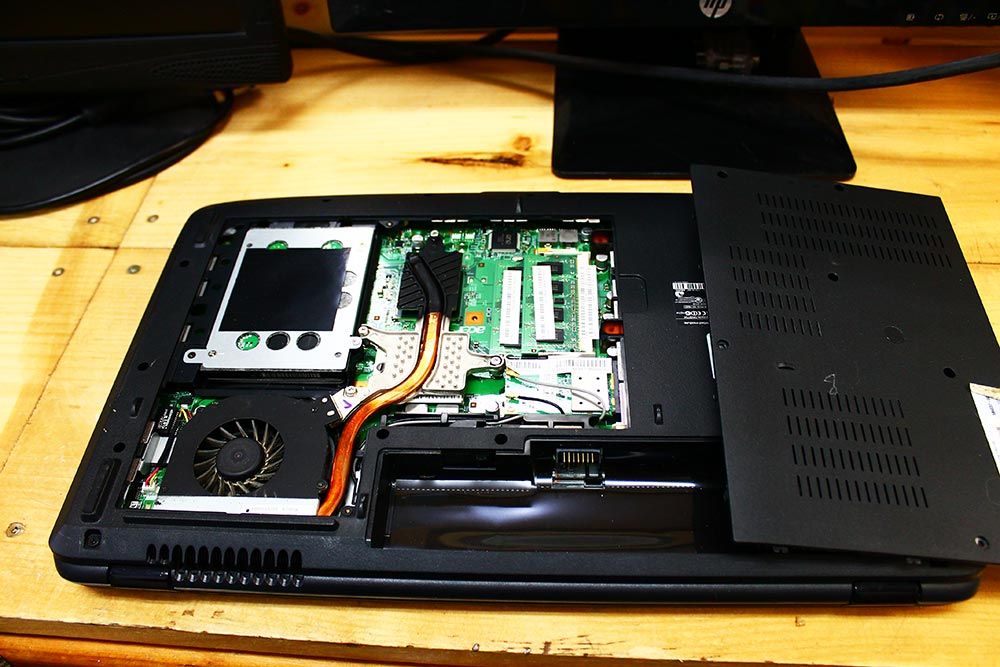

Gaining access to the cooling system of Acer Aspire 5735/5735Z is pretty easy. Just unscrew nuts and remove the bottom cover.

acer_5735z_overheating_fix3

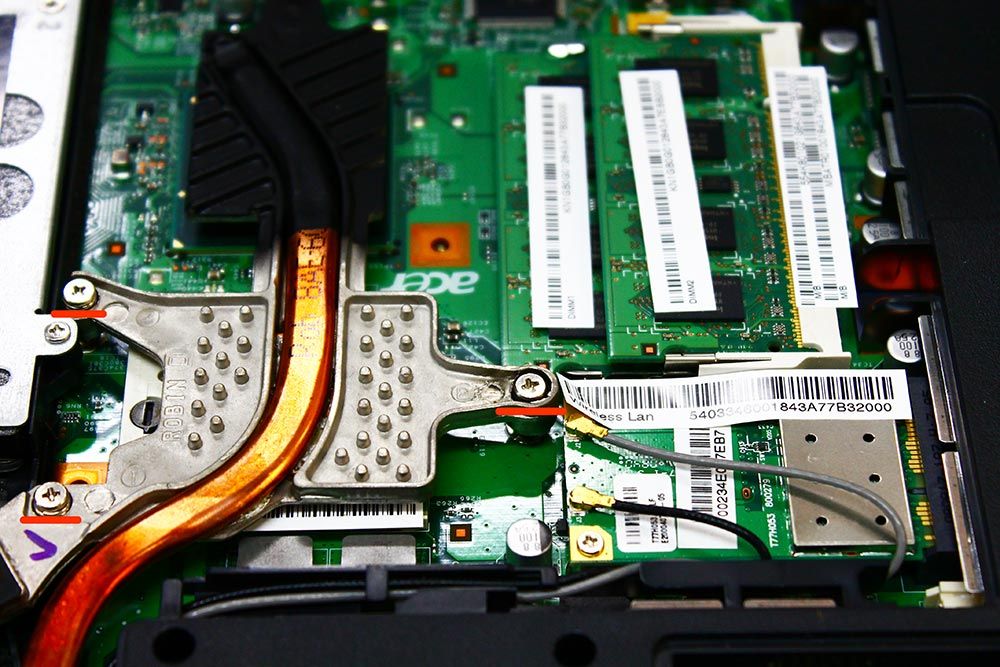

Remove the three nuts from the CPU heat sink.

acer_5735z_overheating_fix4

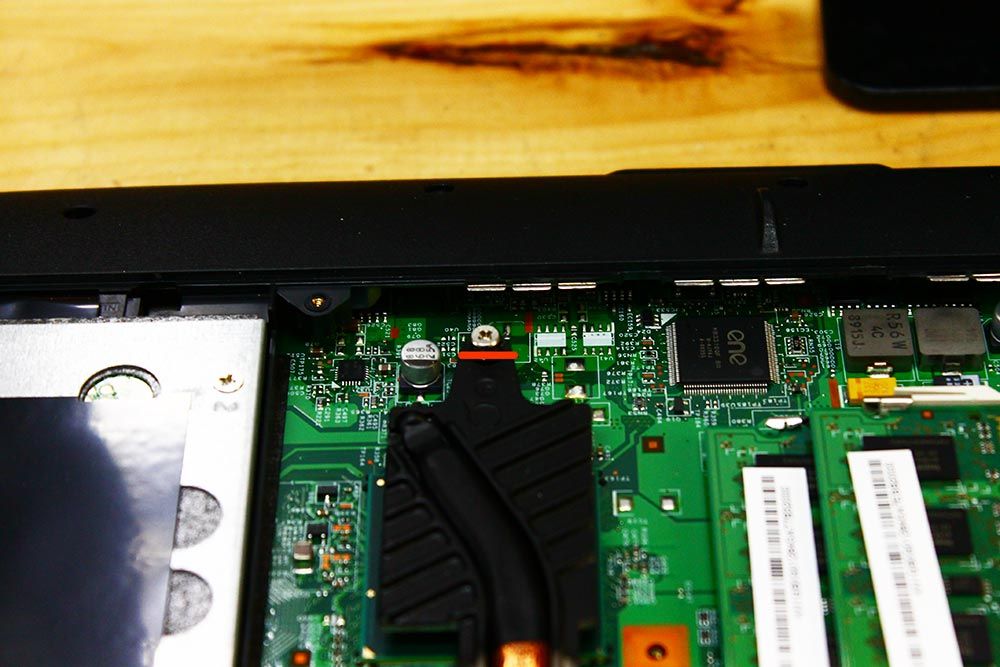

Remove the nut above as well as the other nuts.

acer_5735z_overheating_fix5

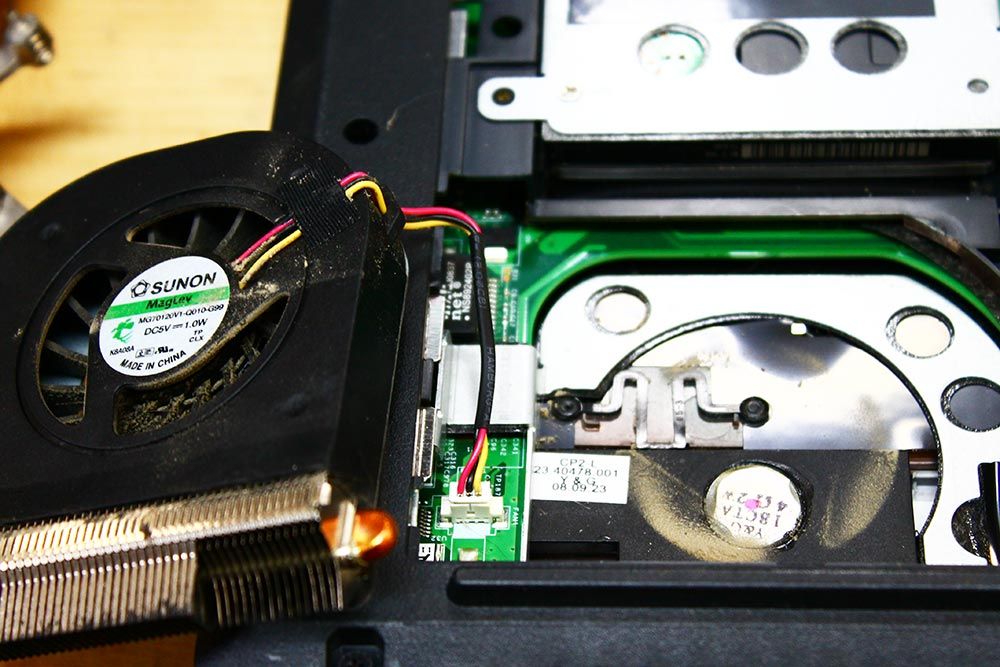

Also, remove the cooling fan connector from the motherboard before you remove the whole heat sink assembly.

acer_5735z_overheating_fix6


acer_5735z_overheating_fix7

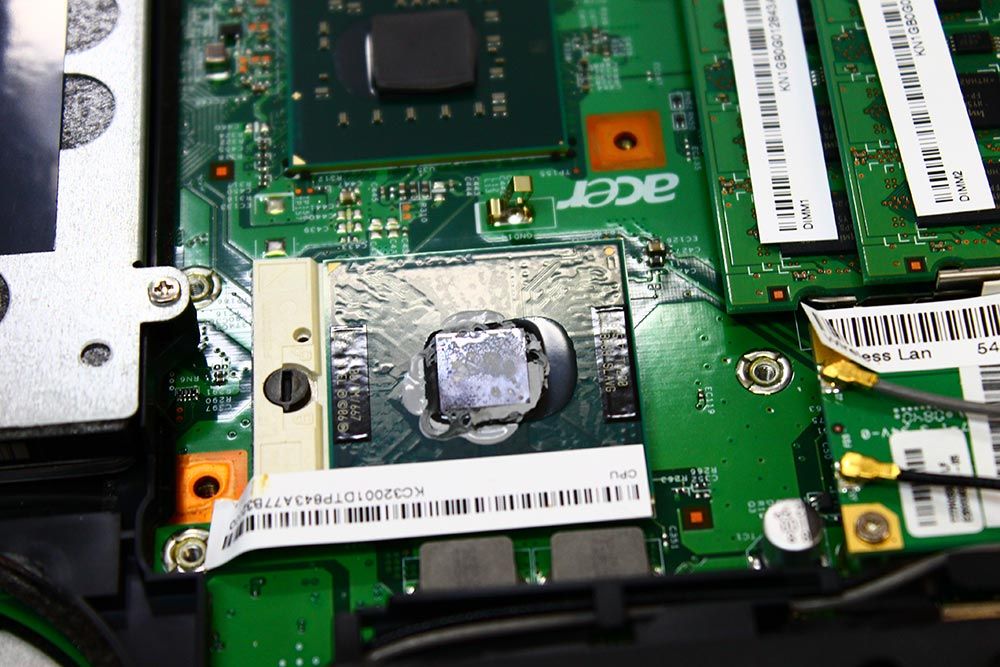

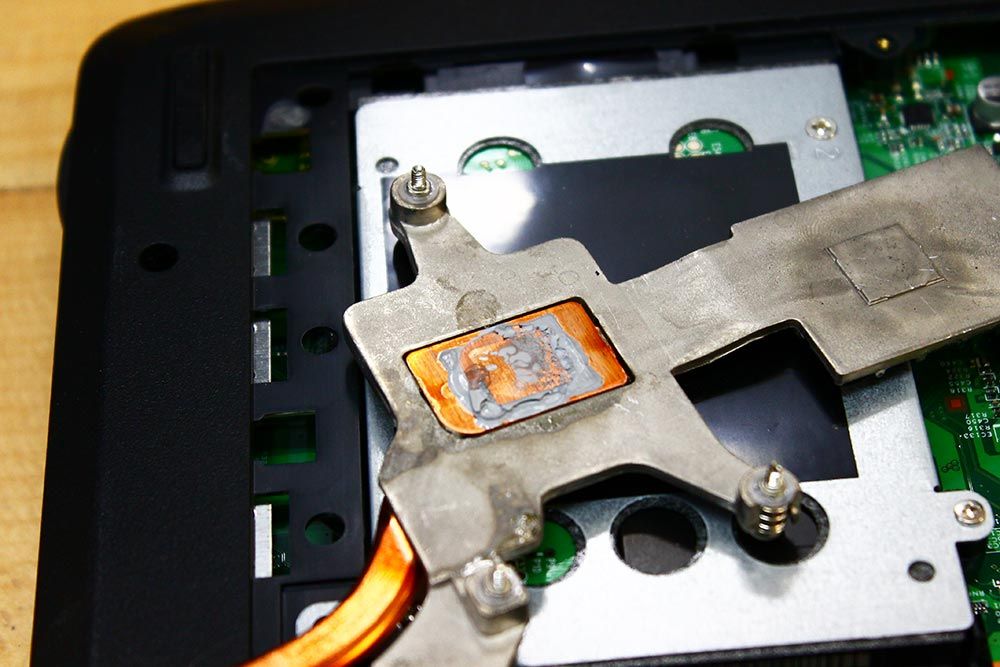

As we expected, the thermal grease has dried out on the processor. We need to clean it first, and then we will apply new thermal grease.

acer_5735z_overheating_fix8


acer_5735z_overheating_fix9

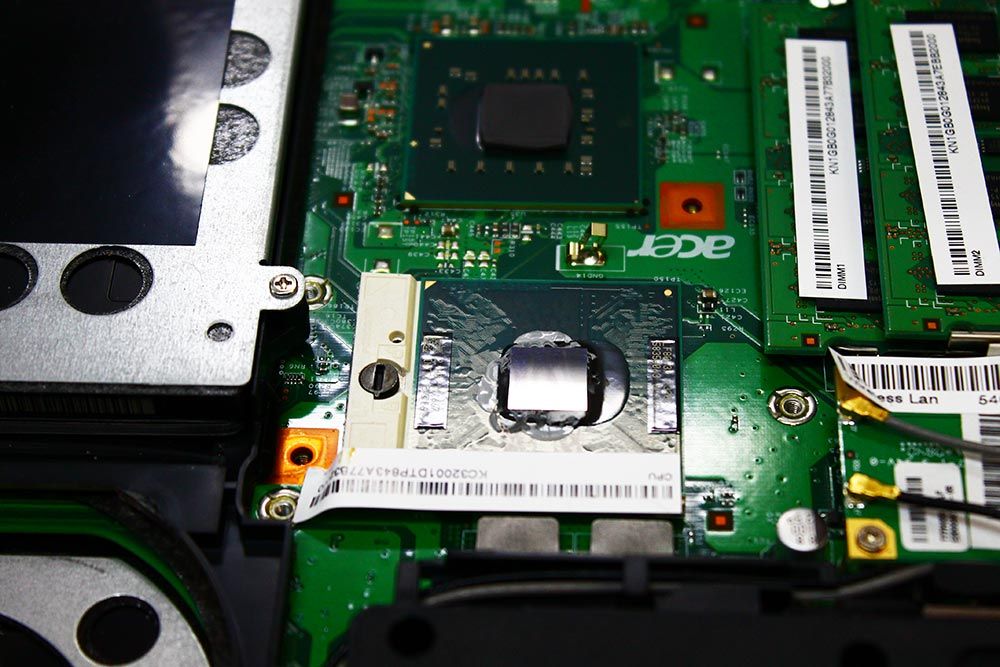

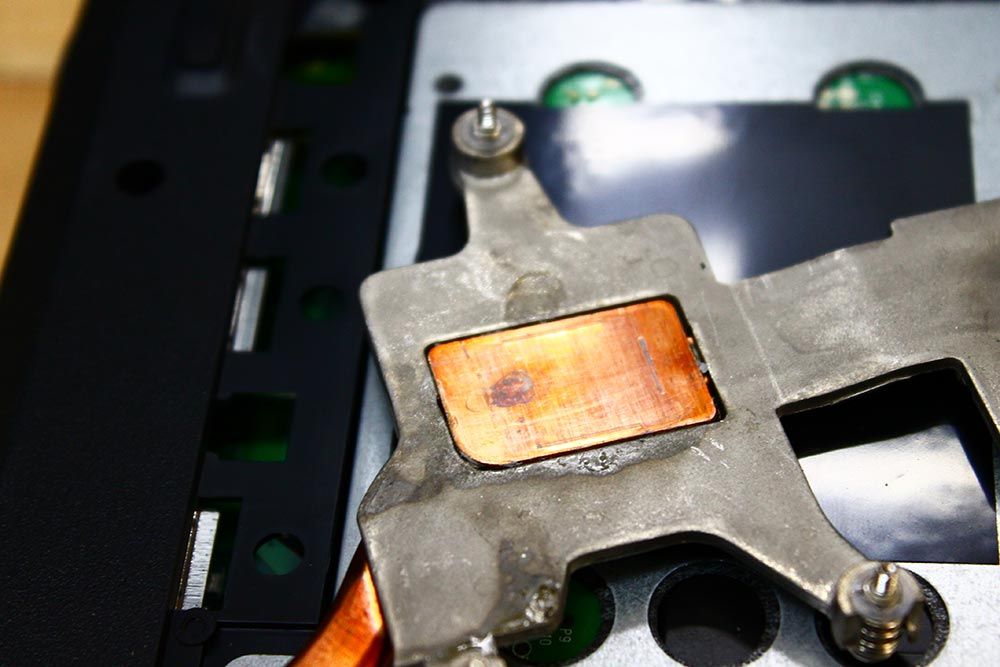

Nice and Shiny. Let’s put new thermal compound for the nice cooling efficiency! 😀

acer_5735z_overheating_fix10

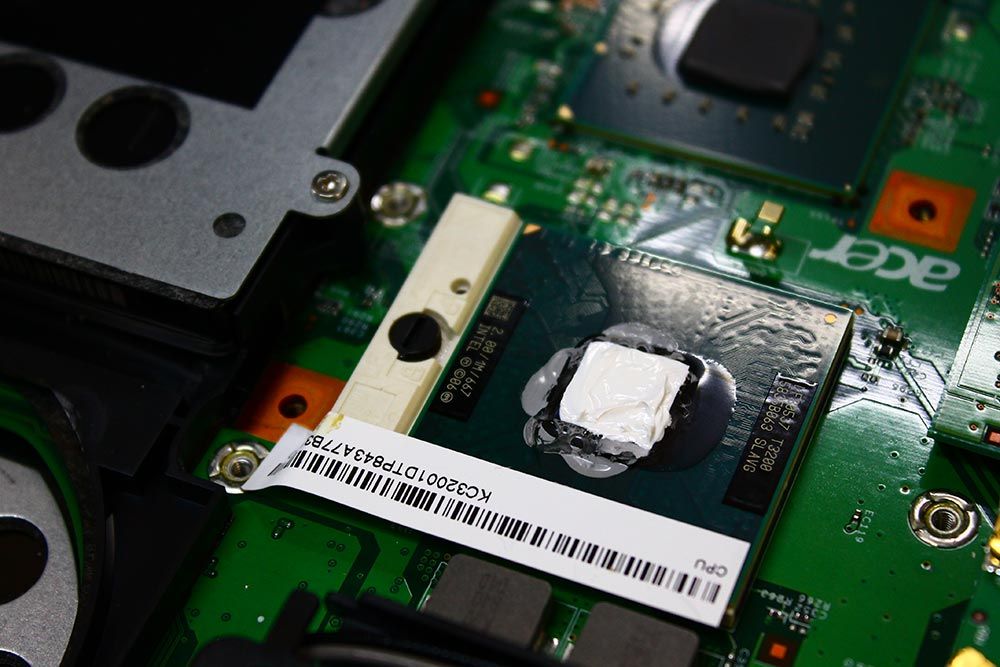

Here you go. New thermal compound applied. Let’s re-assemble the laptop, and we are ready!

acer_5735z_overheating_fix11

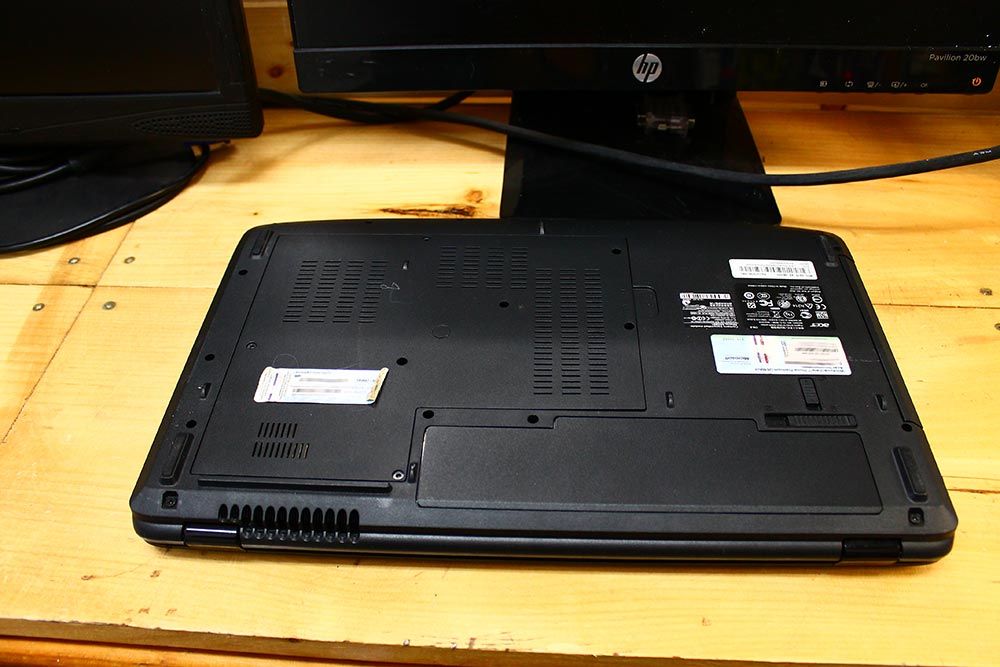

Looks good! We turned on the laptop after doing this repair, and the laptop did not shut down all day !!!

The overheating and shutting down issue solved !!!

Thank you for reading and have a nice day!
