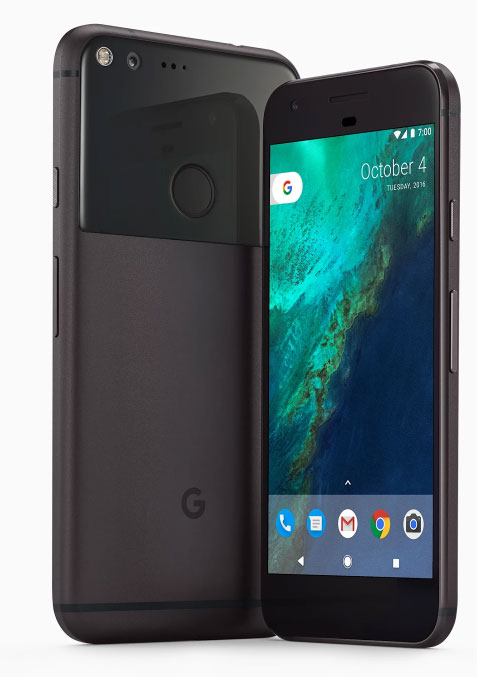

Google Pixel Specifications

General

Manufacturer

Google

Release Date

October 20, 2016

Official Website

https://madeby.google.com/phone/

Body

Device Type

Smartphone

Colors

Quite Black, Very Silver

Dimensions

5.6 x 2.7 x 0.2 ~ 0.3 inches

Weight

Hardware

Chipset

Qualcomm® Snapdragon™ 821
2.15Ghz + 1.6Ghz, 64Bit Quad-Core

Storage

32 or 128GB

Memory

4GB LPDDR4 RAM

OS

Android 7.1 Nougat
Two years of OS upgrades from launch
Three years of security updates from launch

Display

Features

100% NTSC
100000:1, super contrast ratio
True black level
Full 24-bits depth or 16.77 million colors
Less than 40% brightness decrease at 30 degree viewing angle
2.5D Corning® Gorilla® Glass 4

Size

5.0 inches

Resolution

1080 x 1920 FHD AMOLED at 441ppi

Camera

Features

Main Camera – 12.3MP, Large 1.55μm pixels, Phase detection autofocus + laser detection autofocus, f/2.0 Aperture
Front Camera – 8MP, 1.4µm pixels, f/2.4 Aperture, Fixed focus

Video

Features

1080p @ 30fps, 60fps, 120fps
720p @ 30fps, 60fps, 240fps
4K @ 30fps

Audio

Features

Single bottom-firing speaker
3 Mics
Noise Suppression

Battery

Battery Life

2,770 mAh battery
Standby time (LTE): up to 19 days
Talk time (3g/WCDMA): up to 26 hours
Internet use time (Wi-Fi): up to 13 hours
Internet use time (LTE): up to 13 hours
Video playback: up to 13 hours
Audio playback (via headset): up to 110 hours

Features

Fast charging: up to 7 hours of use from only 15 minutes of charging

Connectivity

Bluetooth

Bluetooth 4.2

WLAN

Wi-Fi 802.11 a/b/g/n/ac 2×2 MIMO

Network

 North America
  • GSM: Quad-band GSM
  • UMTS/WCDMA: B 1/2/4/5/8
  • CDMA: BC0/BC1/BC10
  • TD-SCDMA: N/A
  • FDD LTE: B 1/2/3/4/5/7/8/12/13/17/20/25/26/28/29/30
  • TDD LTE: B 41

LTE 2xCA: B2+B2, B2+B4, B2+B5, B2+B12, B2+B13, B2+B17, B2+B29, B2+B30, B4+B4, B4+B5, B4+B7, B4+B12, B4+B13, B4+B17, B4+B29, B4+B30, B5+B30, B7+B7, B12+B30, B25+B25, B29+B30, B41+B41

LTE 3xCA: B2+B2+B12, B2+B2+B13, B2+B4+B4, B2+B4+B5, B2+B4+B12, B2+B4+B13, B2+B4+B29, B2+B5+B30, B2+B12+B30, B2+B29+B30, B4+B4+B12, B4+B4+B13, B4+B5+B30, B4+ B7+ B12, B4+B12+B30, B4+B29+B30, B41+B41+B41

Rest of World

  • GSM: Quad-band GSM
  • UMTS/WCDMA: B 1/2/4/5/6/8/9/19
  • CDMA: BC0
  • TD-SCDMA: B 34/39
  • FDD LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/21/26/28/32/
  • TDD LTE: B 38/39/40/41

LTE 2xCA: B1+B3, B1+B5, B1+B7, B1+B8, B1+B18, B1+B19, B1+B20, B1+B21, B1+B26, B1+B41, B3+B3, B3+B5, B3+B7, B3+B8, B3+B19, B3+B20, B3+B28, B5+B7, B7+B7, B7+B8, B7+B20, B7+B28, B19+B21, B20+B32, B38+B38, B39+B39, B39+B41, B40+B40, B41+B41

LTE 3xCA: B1+B3+B3, B1+B3+B5, B1+B3+B8, B1+B3+B20, B1+B5+B7, B1+B19+B21, B1+B41+B41, B3+B3+B5, B3+B3+B7, B3+B3+B8, B3+B7+B7, B3+B7+B8, B3+B7+B20, B3+B7+B28, B7+B7+B28
