Keyboard Replacement for Dell E4300 laptop – November 20, 2015


Hello everyone ! It has been a long time since we wrote a blog post in PNT REPAIR section. Today, we did replace a keyboard for Dell E4300 laptop model. It is 13″ Dell Latitude model. A customer brought this in after spilling milk on it. Most of the keys are working except few keys. Let’s get started. πŸ˜€ πŸ˜€ πŸ˜€

dell_e4300_keyboard_replacement1

Here is the Dell Latitude E4300 model. Due to the spilled milk on the keyboard, some keys are not working. It is lucky that the laptop still runs fine. πŸ™‚

dell_e4300_keyboard_replacement2

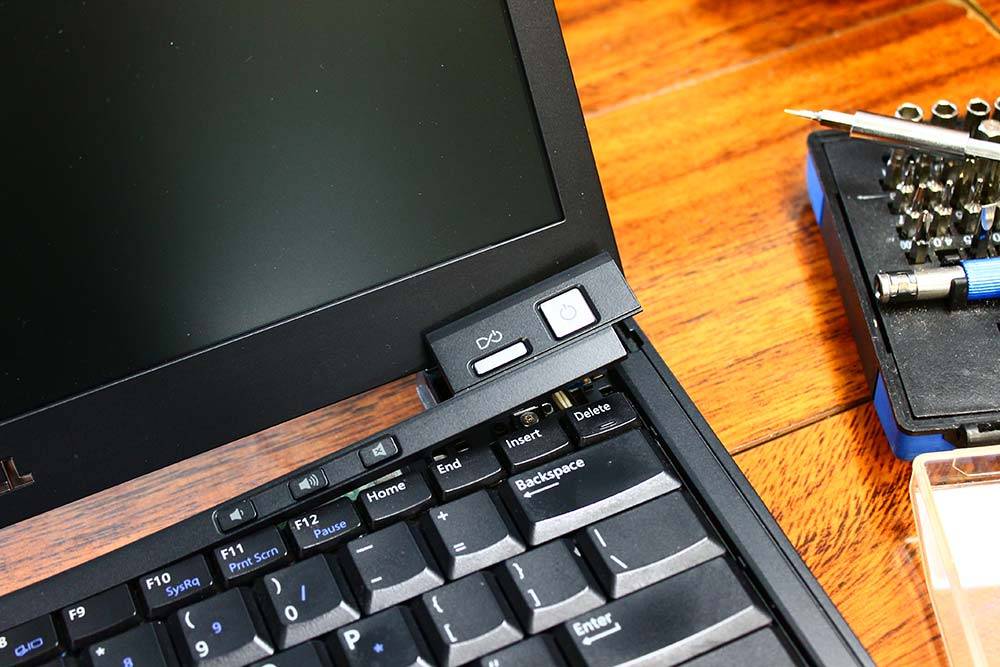

Use aΒ flat head screwdriver to remove the plastic top cover located above the keyboard.

dell_e4300_keyboard_replacement3

dell_e4300_keyboard_replacement4

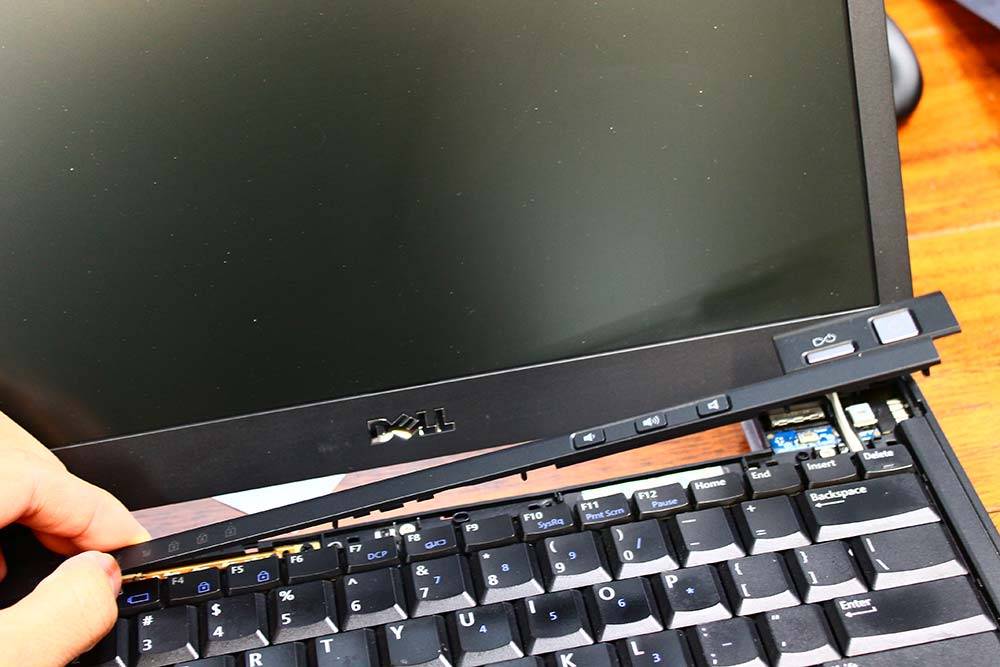

It is very easy to remove the plastic cover. Do not put too much force on it. You may break it. πŸ˜€

dell_e4300_keyboard_replacement5

dell_e4300_keyboard_replacement6

dell_e4300_keyboard_replacement7

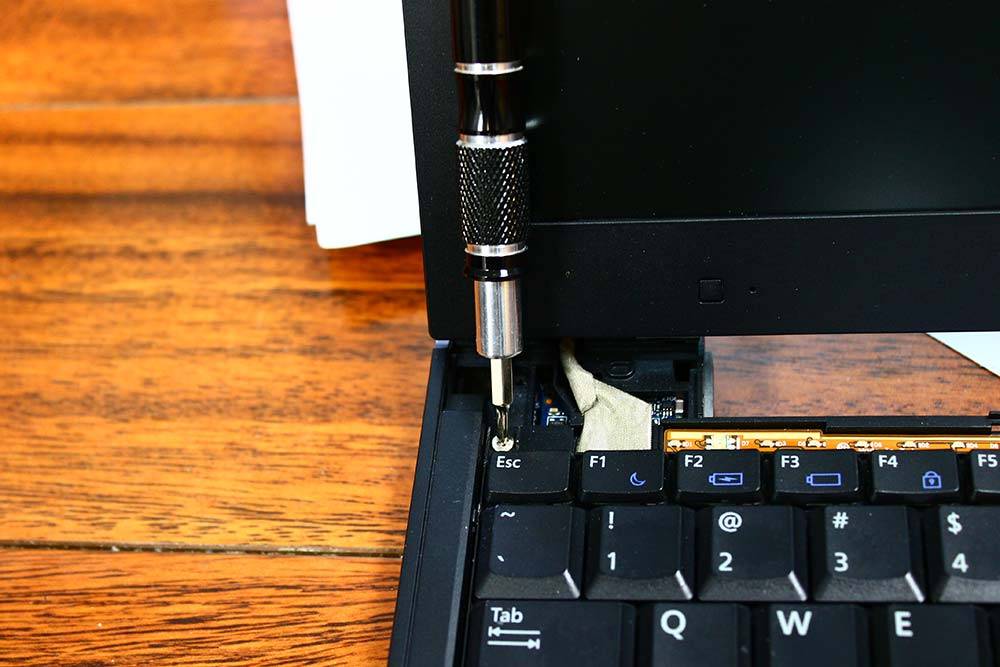

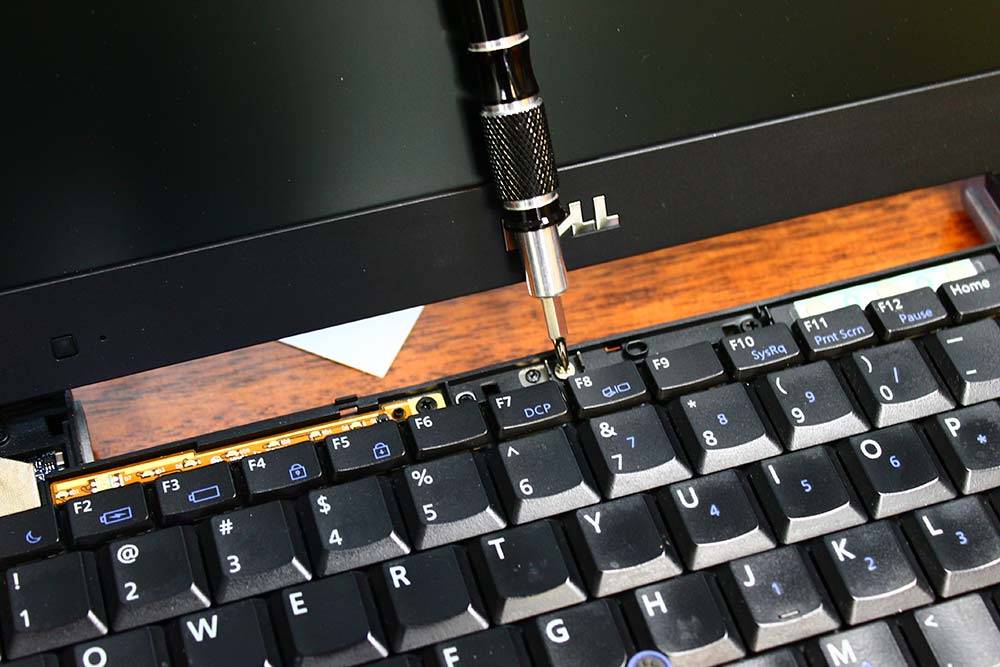

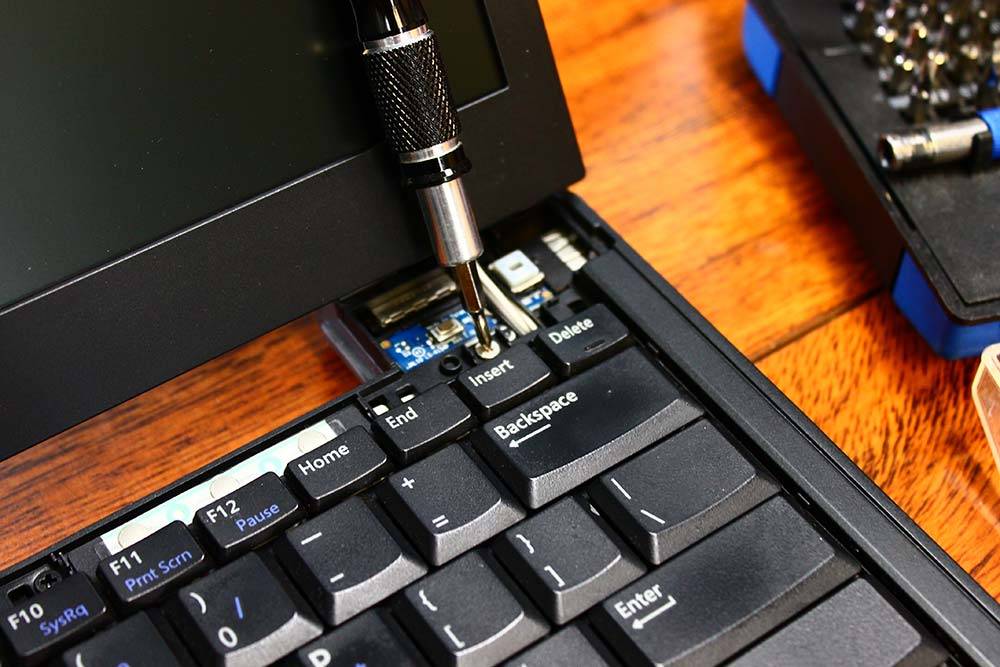

There are three phillip screws holding the keyboard. Left, middle, and right. Remove those screws.



dell_e4300_keyboard_replacement8

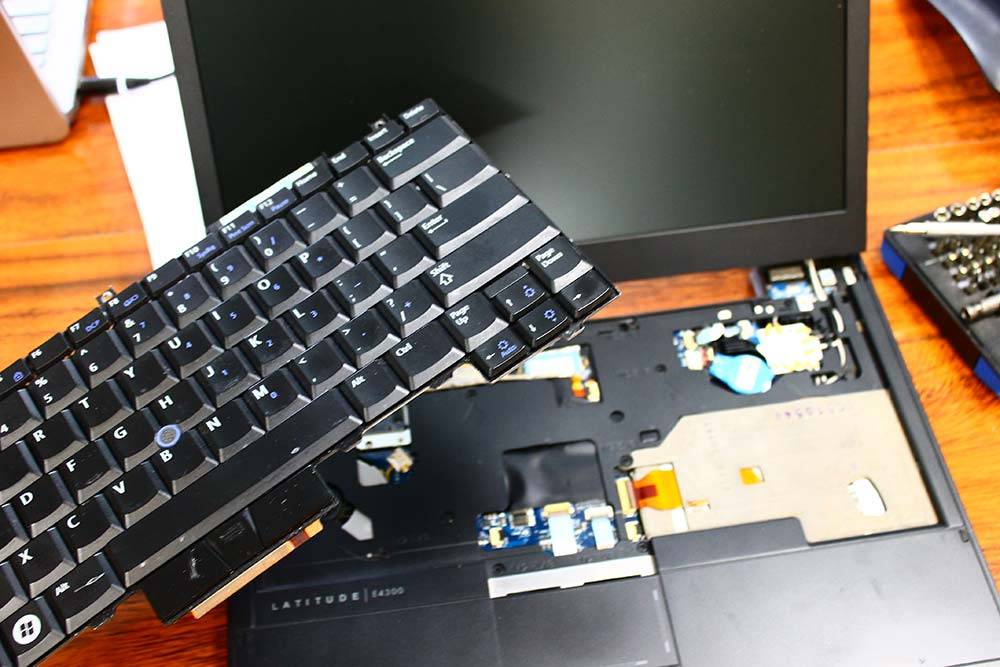

Once you remove the screws, slide the keyboard up to remove like the picture above.

dell_e4300_keyboard_replacement9

The old keyboard has removed from the laptop.

dell_e4300_keyboard_replacement10

Place a new keyboard, and slide it down to install the keyboard. Please note that the connector for the keyboard is located in the bottom centre.

dell_e4300_keyboard_replacement11

New keyboard installed! πŸ˜€ πŸ˜€ πŸ˜€ Let’sΒ put the plastic cover back to it’s place.

dell_e4300_keyboard_replacement12

Done ! The new keyboard looks nice and shiny !!

Thank you for reading, if you are having trouble, let us know.
